Manufactured Sand Production Systems

High efficiency, excellent particle shape and intelligent control
Sand Making Machine (VSI Crusher, Capacity up to 720 tph)
  • Sand Making Machine (VSI Crusher, Capacity up to 720 tph)
  • Sand Making Machine (VSI Crusher, Capacity up to 720 tph)
  • Sand Making Machine (VSI Crusher, Capacity up to 720 tph)

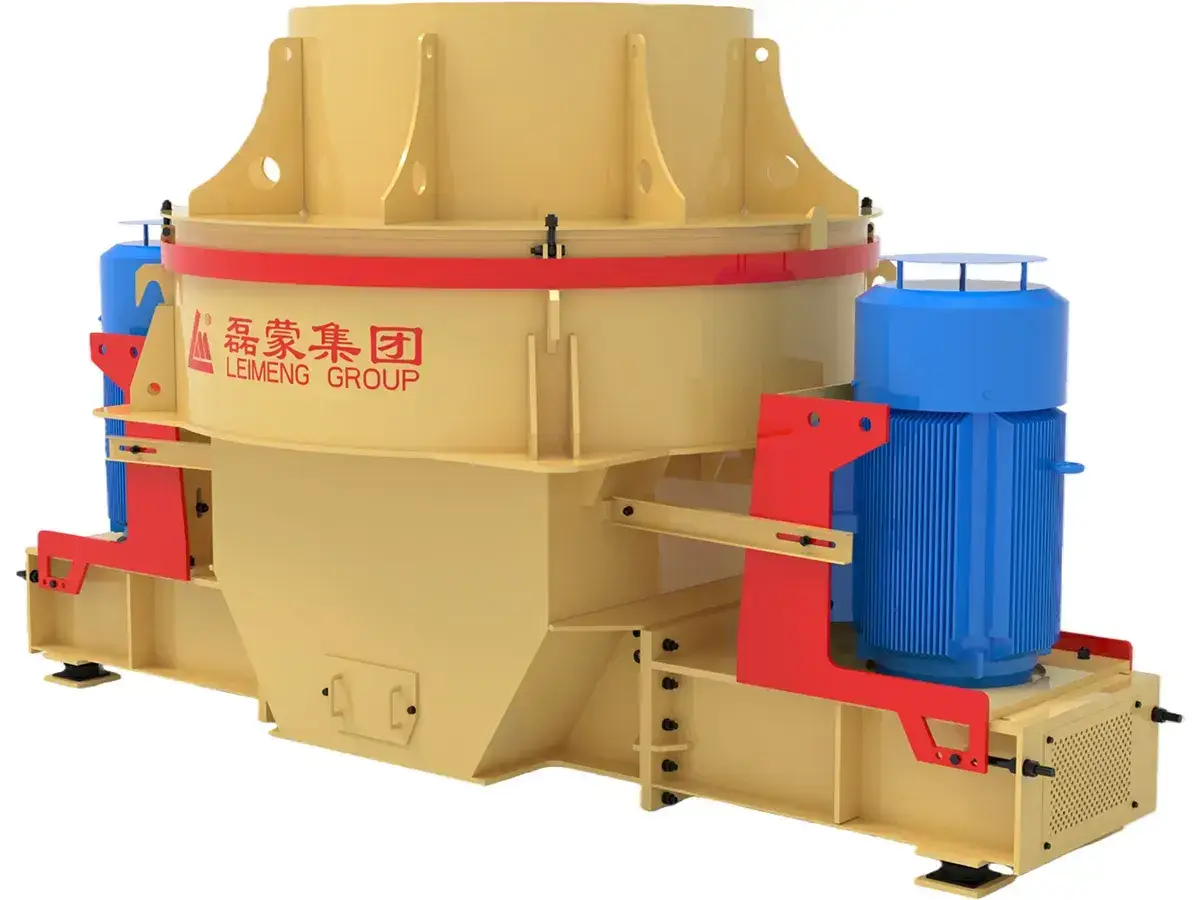

LM Series Sand Making Machine

(VSI Crusher, Capacity up to 720 tph)

The LM Series VSI sand making machine is designed for fine crushing, manufactured sand production and aggregate shaping. It is suitable for hard rock, medium-hard materials and applications that require improved particle shape.

It can be used in manufactured sand production, cement pre-grinding, refractory material processing and construction aggregate applications.

Suitable materials include granite, basalt, limestone, quartz stone, gneiss, cement clinker, concrete aggregates, bauxite, silica and similar materials.

Request a Quote
Features

  • Multiple Crushing Modes: Rock-on-rock and rock-on-metal crushing modes are available to meet different material and shaping requirements.

  • Optional Configurations: Multiple optional components are available, with key parts selected from internationally recognized brands.

  • Wide Material Adaptability: Suitable for a wide range of hard rock, mineral and aggregate materials.

  • Energy-Saving Design: Designed for efficient operation with lower energy consumption and fewer auxiliary equipment requirements.

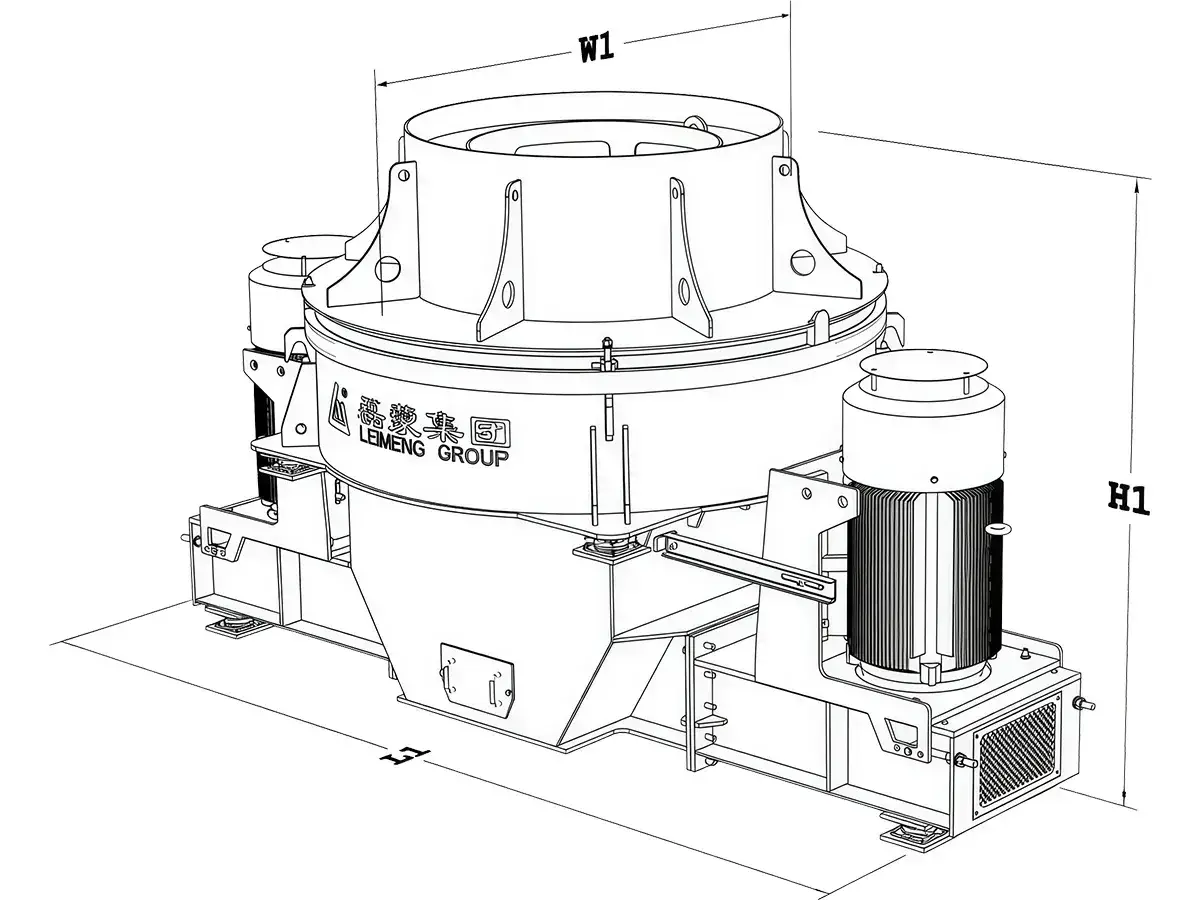

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
LM6000 2750 1970 2660
LM7000 3440 2180 2670
LM7500 4410 2180 2670
LM8000 4480 2540 2880
LM8500 4480 2540 2880
LM9000 4980 2540 2880
LM9500 4980 2540 2880
LM10000 4980 2540 2880
Dimensions
Technical Parameters
Model Max. feeding size (mm) Linear speed (m/s) Capacity (t/h) Power (kW) Installation dimensions (mm)
LM6000 40 60-89 53-240 160 3600×1970×3290
LM7000 40 60-89 80-430 250 3910×2180×3810
LM7500 40 60-89 100-450 132×2 5000×2180×3810
LM8000 40 60-89 188-520 160×2 5200×2540×3910
LM8500 40 60-89 230-550 200×2 5200×2540×3910
LM9000 40 60-89 275-600 250×2 5810×2540×3910
LM9500 40 60-89 290-650 280×2 5810×2540×3910
LM10000 40 60-89 320-720 315×2 5810×2540×3910
Projects

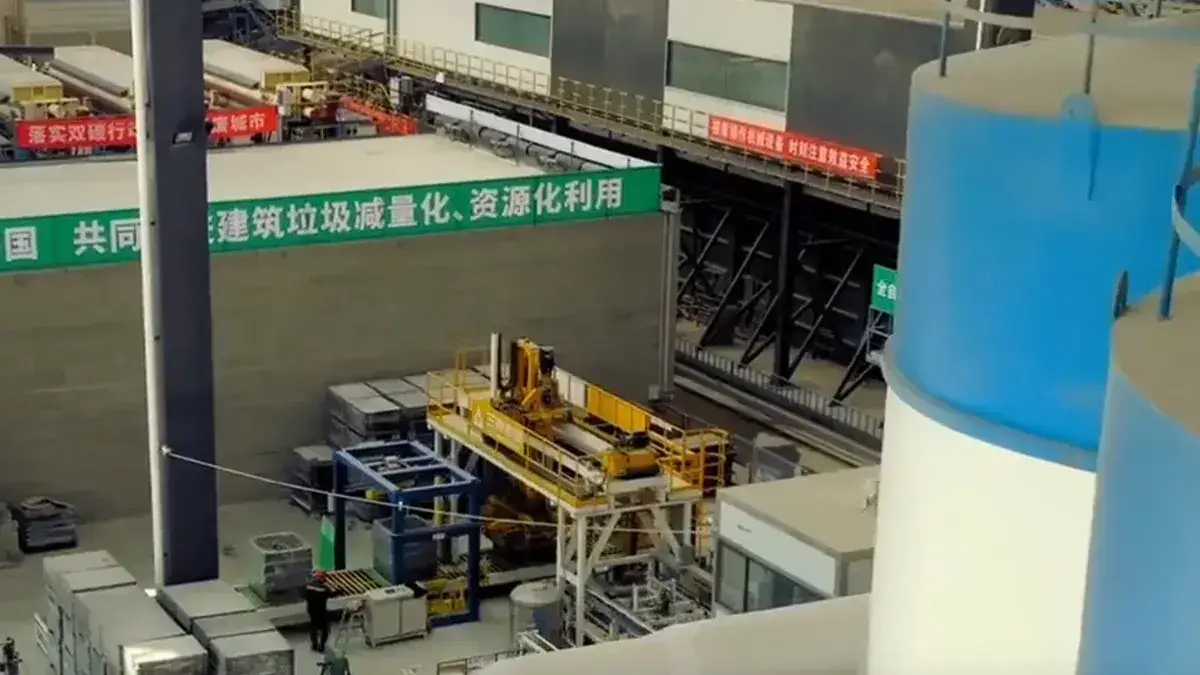

Construction Waste Recycling Project of Youxiang Company in SichuanConstruction Waste Recycling Project of Youxiang Company in Sichuan
Sand Making and Washing Project in Jiangmen, GuangdongSand Making and Washing Project in Jiangmen, Guangdong

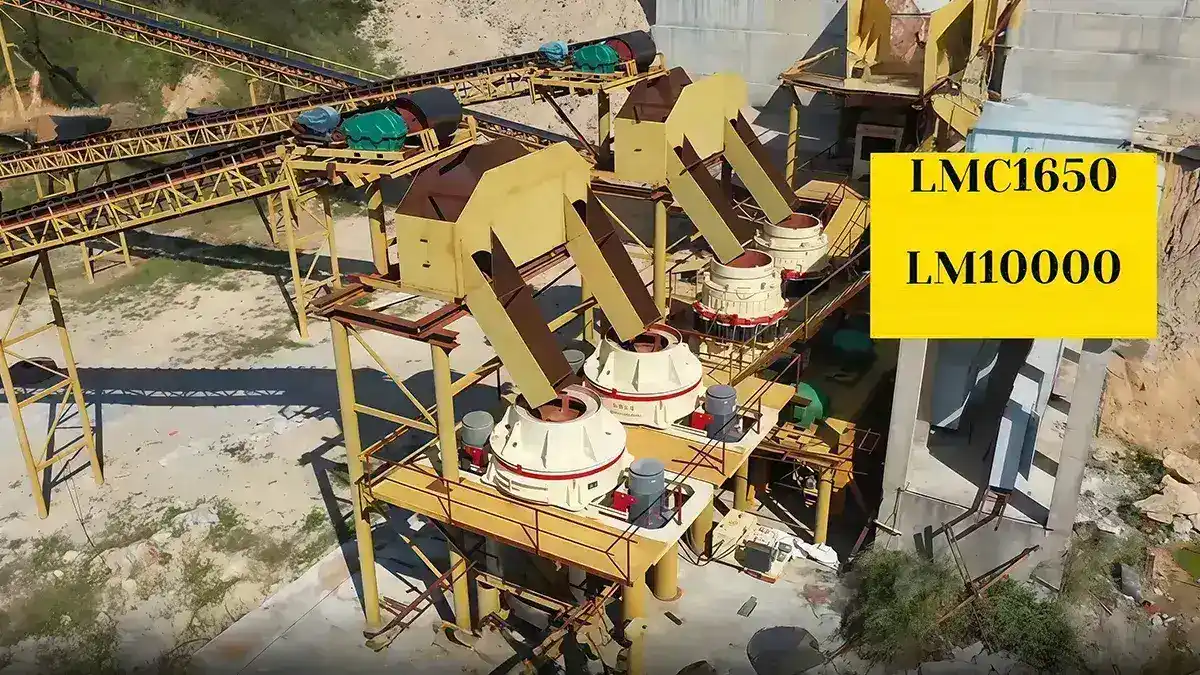

Aggregate Production Line Project (1200-1500 tons per hour)Aggregate Production Line Project (1200-1500 tons per hour)
Aggregate Plant Project of Fenglin Mining Company in GuangxiAggregate Plant Project of Fenglin Mining Company in Guangxi
Aggregate Plant Project of Yangfeng Zhongwei in Jingmen, HubeiAggregate Plant Project of Yangfeng Zhongwei in Jingmen, Hubei
Aggregate Plant Project of Lida Company in Fangchenggang, GuangxiAggregate Plant Project of Lida Company in Fangchenggang, Guangxi
