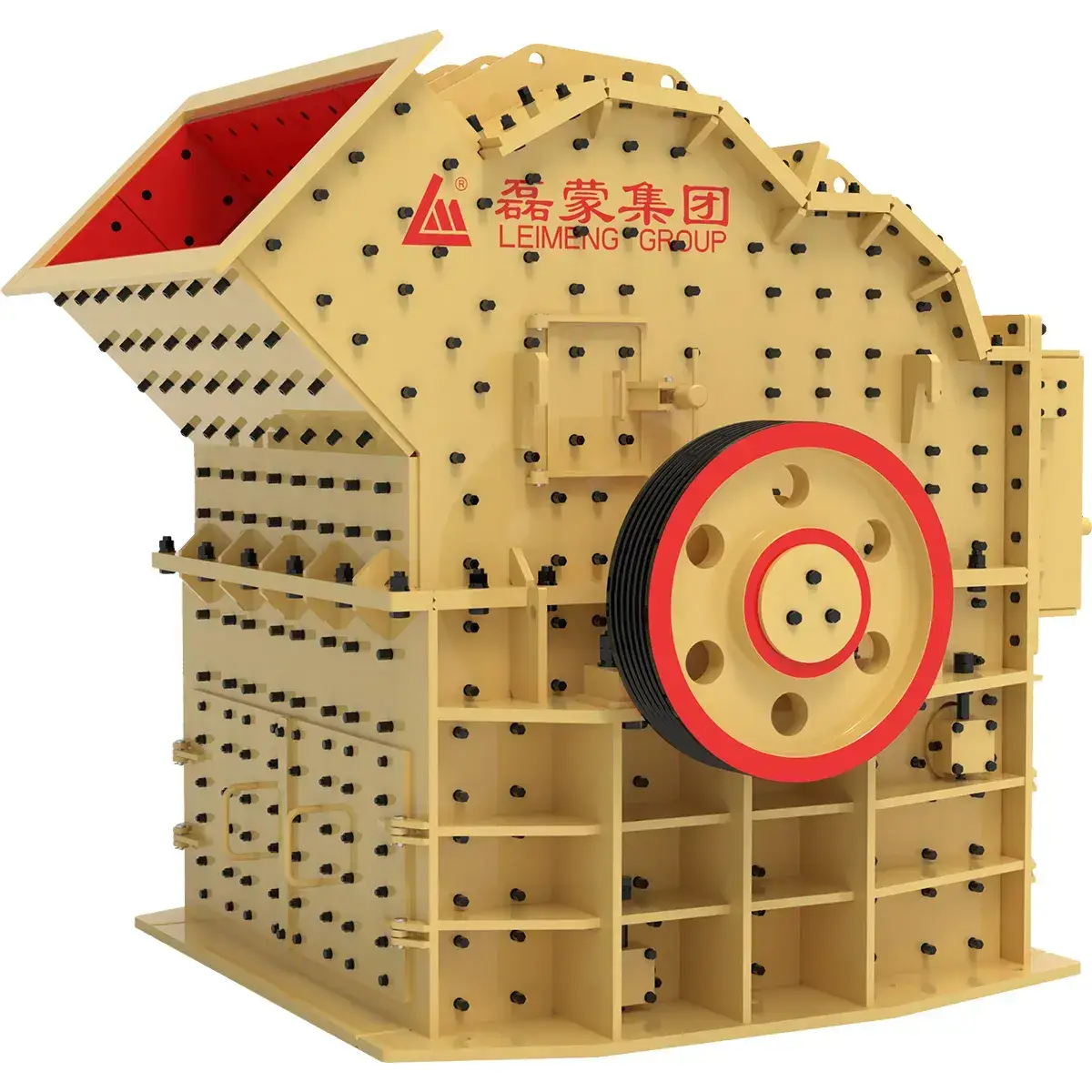

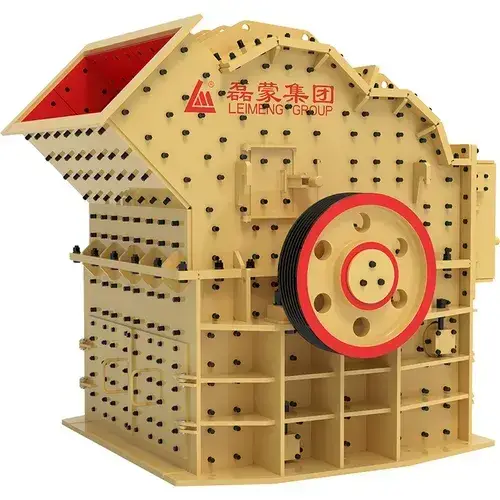

PCX Series Sand Making Machine
(Impact Crusher)
The PCX Series sand making machine is designed for fine crushing, sand production and aggregate shaping. It is suitable for medium- and low-hardness materials such as limestone, gypsum and cement clinker.
With impact crushing and shaping functions, it helps produce manufactured sand with improved particle shape for construction material applications.
The machine features a simple structure, low energy consumption and wear-resistant hammers, supporting stable operation and convenient maintenance.

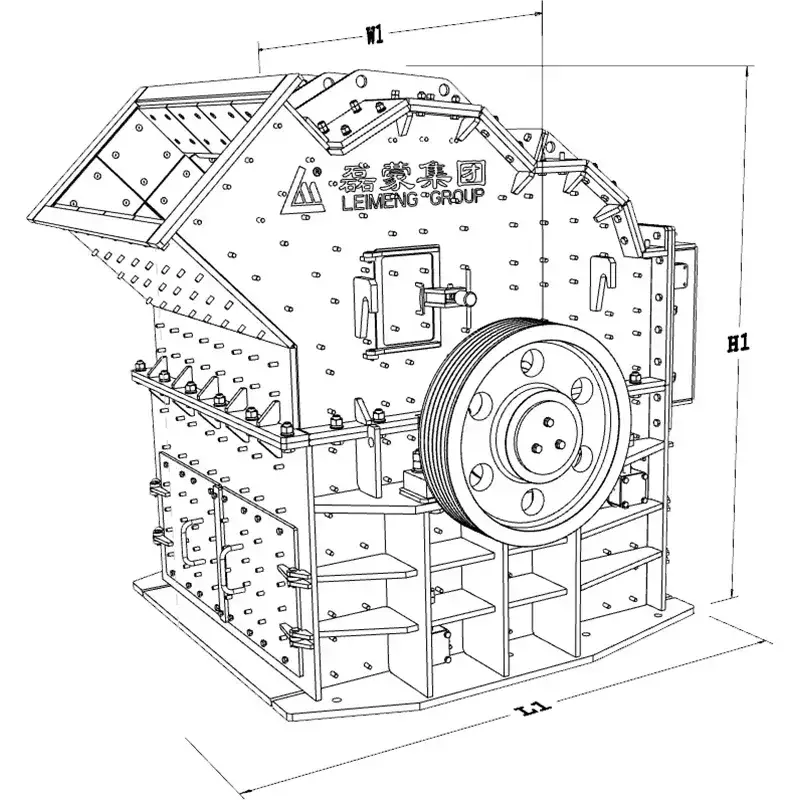

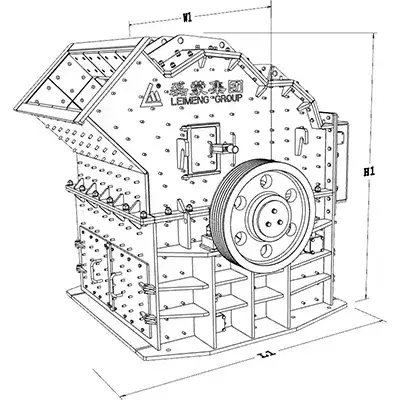

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
1400 | 1510 | 1390 |
| |
1400 | 1910 | 1390 |
| |
1755 | 2180 | 1660 |
| |
2140 | 2590 | 2025 |
| |
2525 | 2870 | 2325 |
| |
2550 | 3120 | 2670 |
| |
2925 | 3565 | 2900 |
| |
3125 | 3755 | 3150 |
Technical Parameters
| Model | Max. feeding size (mm) | Average output size (mm) | Capacity (t/h) | Power (kW) | |
| Cement clinker | Limestone | ||||
| |
≤120 | 0-10 | 15-20 | 20-25 | 37 |
| |
≤120 | 0-10 | 25-30 | 30-40 | 45 |
| |
≤120 | 0-10 | 45-50 | 50-55 | 75 |
| |
≤150 | 0-10 | 50-60 | 60-70 | 90 |
| |
≤150 | 0-10 | 90-100 | 90-110 | 132 |
| |
≤150 | 0-10 | 110-150 | 120-160 | 200 |
| |
≤180 | 0-10 | 170-210 | 210-260 | 250 |
| |
≤180 | 0-10 | 250-270 | 280-310 | 315 |
