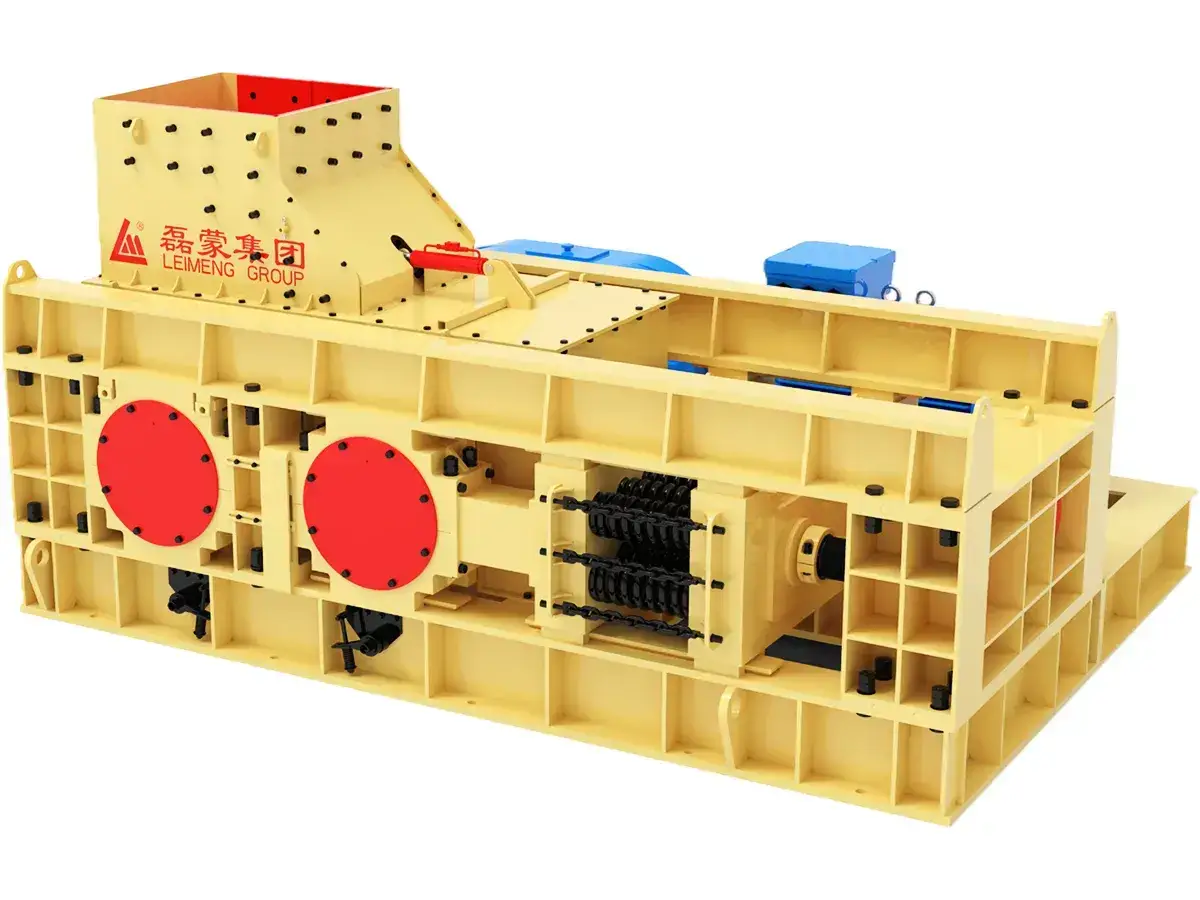

PG Series Sand Making Machine
(Double-Roller Crusher)
The PG Series double-roller sand making machine is designed for fine crushing and sand production. It is suitable for medium-hard and brittle materials that require controlled output size and stable particle grading.

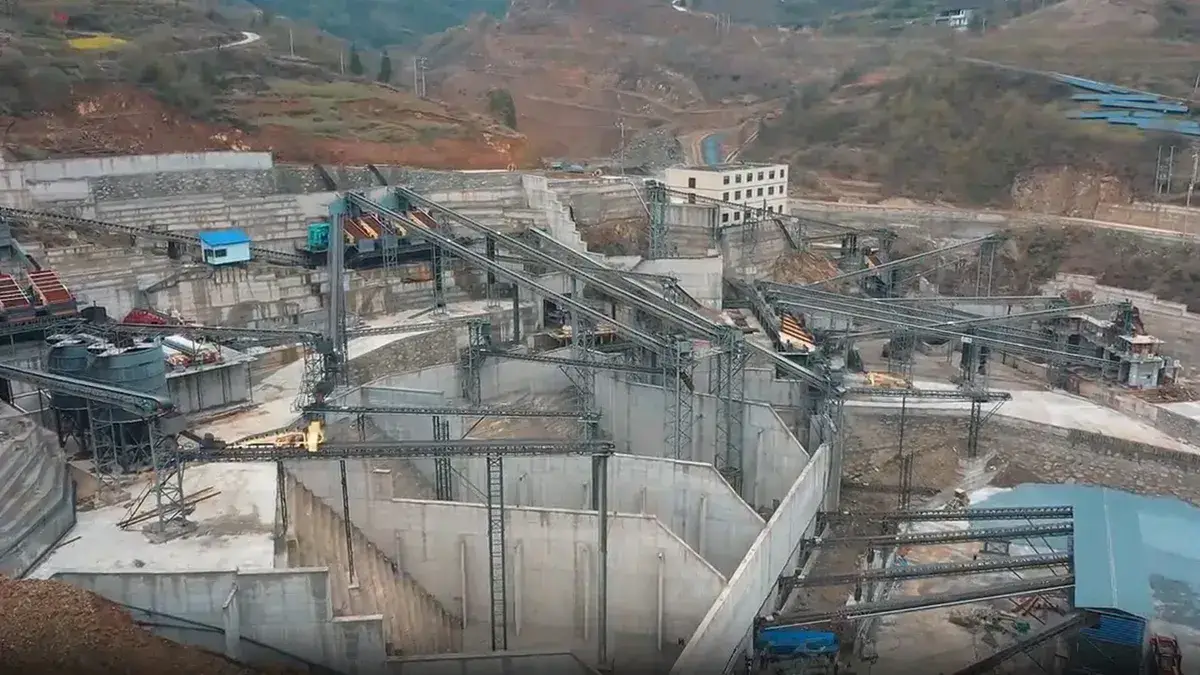

With a double-roller crushing structure, the machine supports stable operation, lower energy consumption and reliable particle size control. It can be used in manufactured sand production, aggregate processing and construction material applications.
Suitable materials include limestone, basalt, quartz stone, cement clinker, concrete aggregates and similar materials.
-

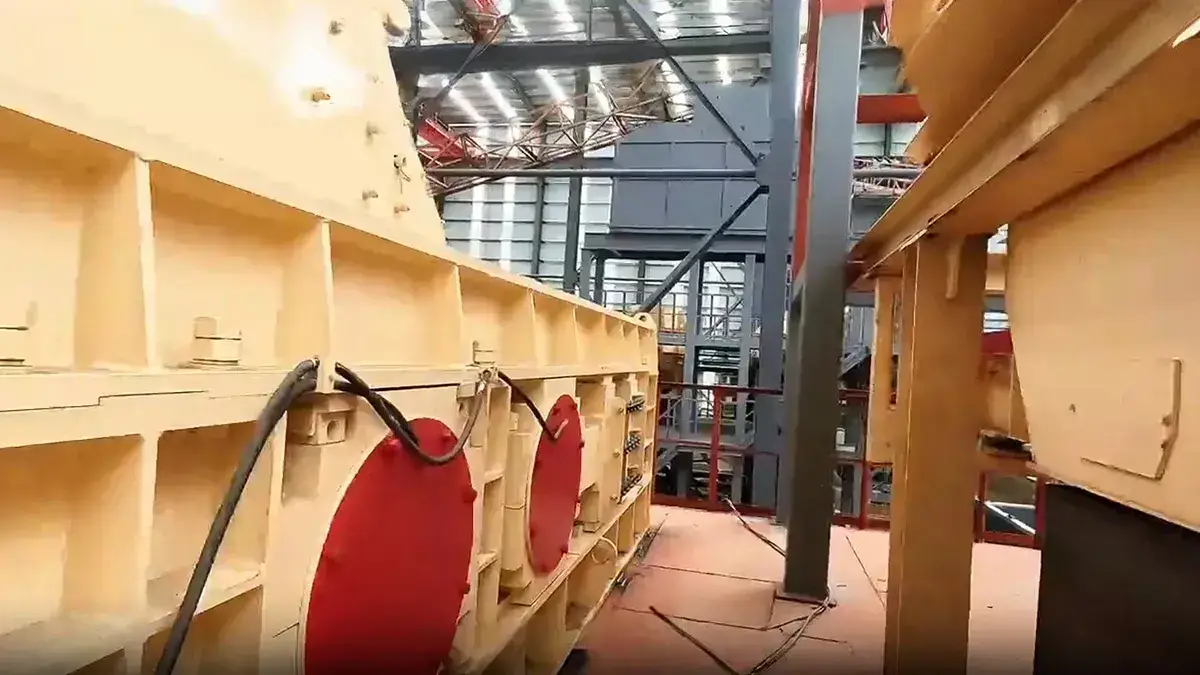

Double-Roller Crushing Structure: The double-roller design supports stable fine crushing and controlled output size.
-
Lower Energy Consumption: The machine is designed for efficient crushing with lower energy use under suitable working conditions.
-
Wide Material Adaptability: Suitable for medium-hard and brittle materials used in sand production, aggregate processing and construction material applications.
- Metal Ores
- Non-Metal Ores
| Model | Roller diameter (mm) |
Roller length (mm) |
Feeding size (mm) |
Output size (mm) |
Capacity (t/h) |
Power (kW) |
Dimensions (mm) (L×W×H) |
| |
900 | 600 | ≦40 | < 5 | 110-150 | 132-160 | 4000×3000×2000 |
| |
1200 | 600 | ≦40 | < 5 | 150-230 | 160-250 | 5000×2800×2550 |
| |
1200 | 1000 | ≦40 | < 5 | 220-300 | 250-315 | 5000×3600×2550 |
| |
1300 | 1000 | ≦40 | < 5 | 280-380 | 315-400 | 5070×3670×2560 |
| |
1500 | 1000 | ≦40 | < 5 | 200-400 | 315-450 | 5700×3600×3050 |
| |
1500 | 1500 | ≦40 | < 5 | 335-600 | 450-630 | 5700×4600×3050 |
