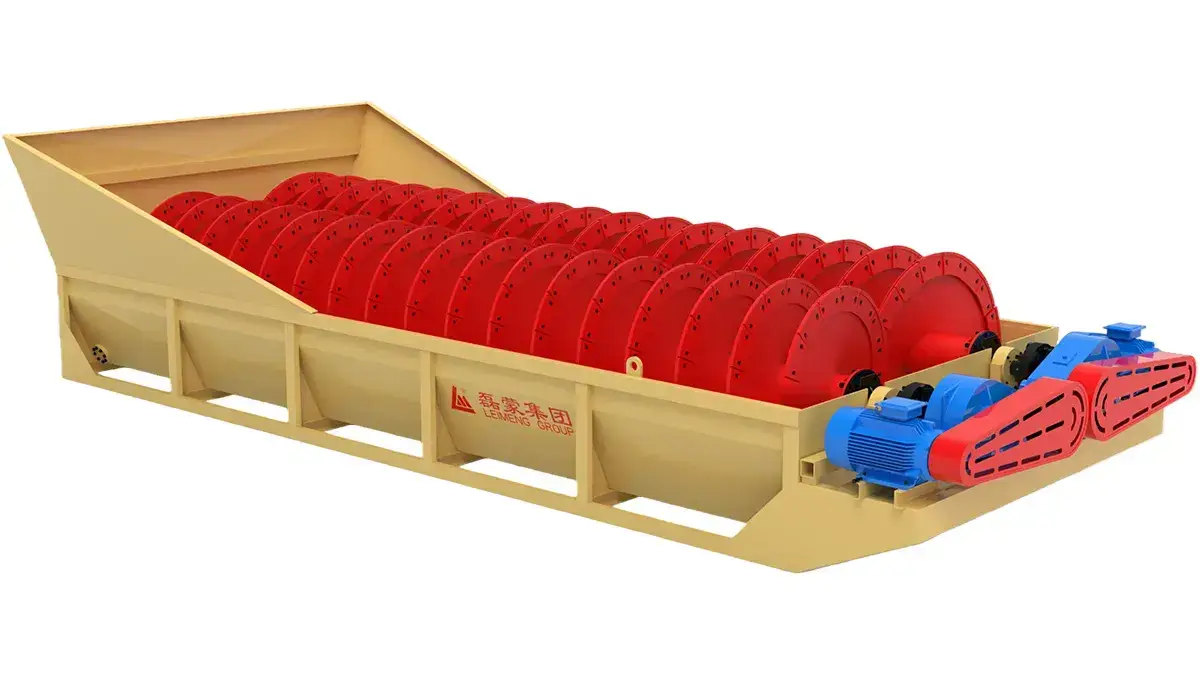

LSX Series Screw Sand Washer
Sand Screw Fine Material Washer & Screw Classifier
The LSX Series screw sand washer is designed for washing, classification and dewatering of sand and fine aggregates. It removes mud and fine impurities while helping recover usable fine sand in wet processing lines.

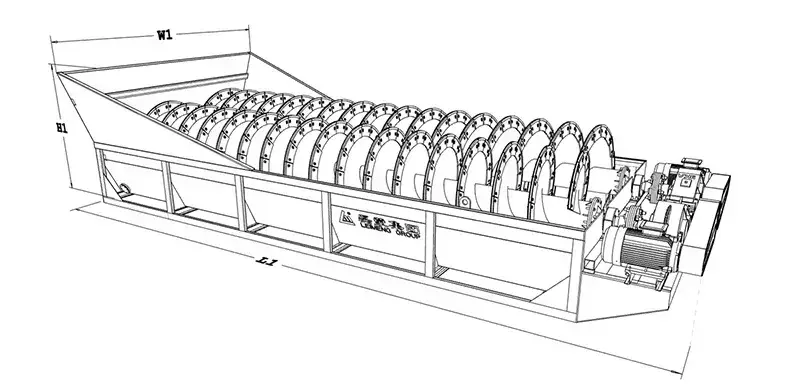

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
7300 | 2200 | 1800 |
| |
8330 | 2400 | 1930 |
| |
8330 | 2400 | 1930 |
| |
8618 | 2700 | 2113 |
| |
8330 | 3660 | 1930 |
| |
8618 | 4000 | 2113 |
Technical Parameters
| Model | Screw diameter (mm) | Tub length (mm) | Feeding size (mm) | Capacity (t/h) | Water consumption (t/h) | Power (kW) |
| 1200 | 6000 | ≤10 | 32-40 | 80-100 | 7.5 | |
| 1200 | 7000 | ≤10 | 32-40 | 80-100 | 75 | |
| 1500 | 7000 | ≤10 | 64-80 | 100-120 | 11 | |
| 1500 | 8000 | ≤10 | 64-80 | 100-120 | 11 | |
| 1200 | 7000 | ≤10 | 128-160 | 180-200 | 11×2 | |
| 1500 | 8000 | ≤10 | 160-192 | 200-220 | 15×2 |
