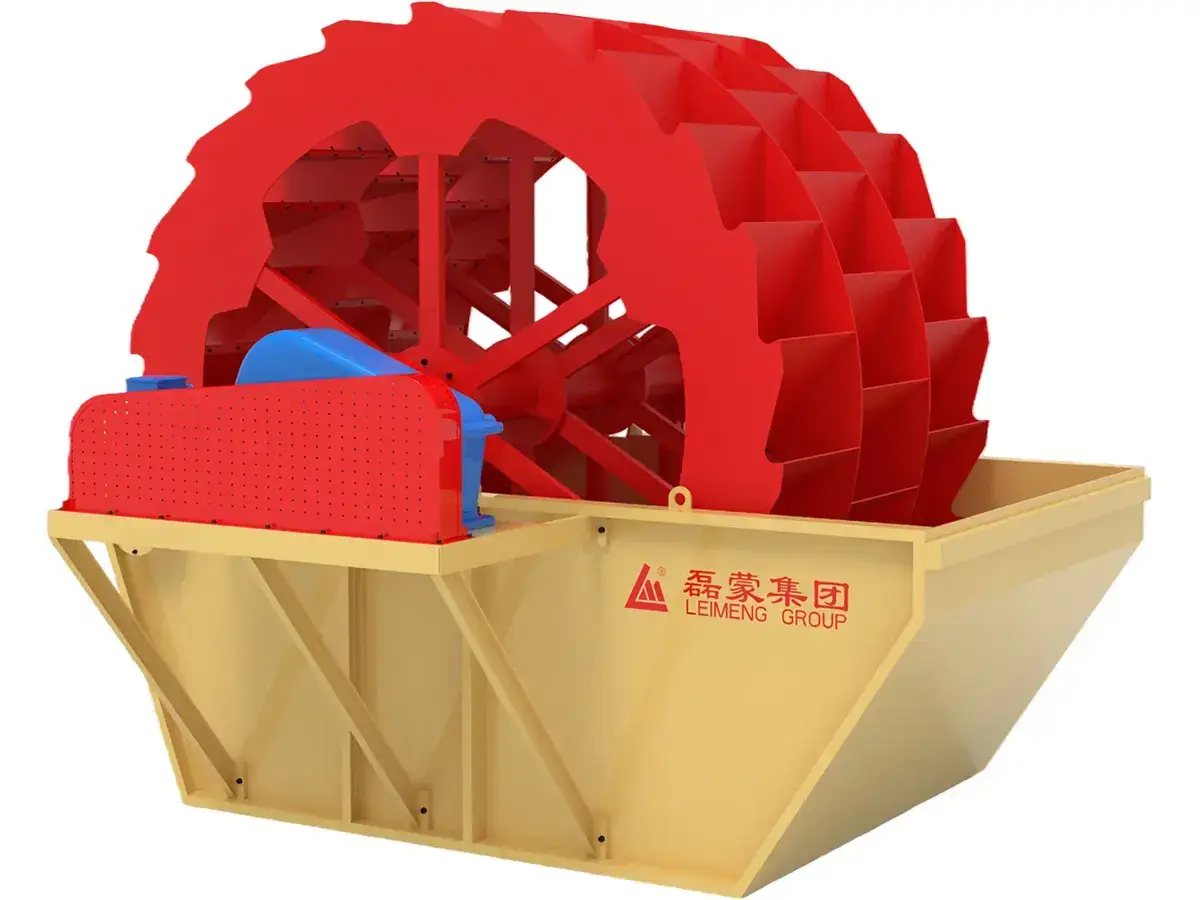

XSD Series Impeller Sand Washer
Bucket Wheel Classifier
The XSD Series impeller sand washer is designed for washing and classifying sand, aggregates and slag particles. It offers simple operation, reliable performance and efficient cleaning for sand and aggregate production.
Working Principle
The high-speed rotating bucket wheel drives sand and aggregates to tumble and rub intensively against each other inside the washing tank, while water flow flushing separates sand from mud, silt, and impurities. The cleaned sand is then lifted and discharged by the bucket wheel.
This “agitation+washing” principle delivers high efficiency, rapidly removes surface contaminants, and provides a certain shaping effect on the sand particles.

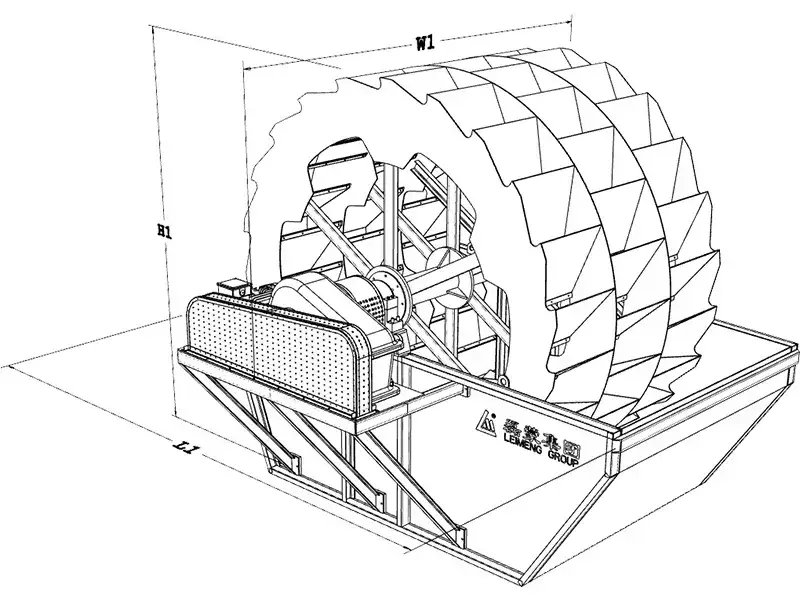

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
3510 | 2300 | 2780 |
| |
4100 | 2670 | 3210 |
| |
4100 | 4170 | 3210 |
| |
4800 | 3510 | 4200 |
| |
4800 | 4210 | 4200 |
| |
5300 | 4300 | 4800 |
| |
5900 | 4500 | 5300 |
Technical Parameters
| Model | Impeller diameter (mm) |
Length of tank (mm) |
Feeding size (mm) |
Spindle speed (r/min) |
Capacity (t/h) |
Water consumption (t/h) |
Power (kW) |
| 2600 | 3510 | ≤10 | 1.1 | 30-80 | 4-4.5 | 5.5 | |
| 3000 | 4000 | ≤10 | 1.1 | 60-160 | 16-30 | 11 | |
| 3000 | 4000 | ≤10 | 1.3 | 100-250 | 20-40 | 22 | |
| 4000 | 4800 | ≤10 | 1.3 | 150-270 | 30-50 | 22 | |
| 4000 | 4800 | ≤10 | 1.3 | 180-300 | 40-70 | 30 | |
| 4500 | 5300 | ≤10 | 1.3 | 260-380 | 60-100 | 30 | |
| 5000 | 5900 | ≤10 | 1.1 | 400-700 | 100-180 | 75 |
