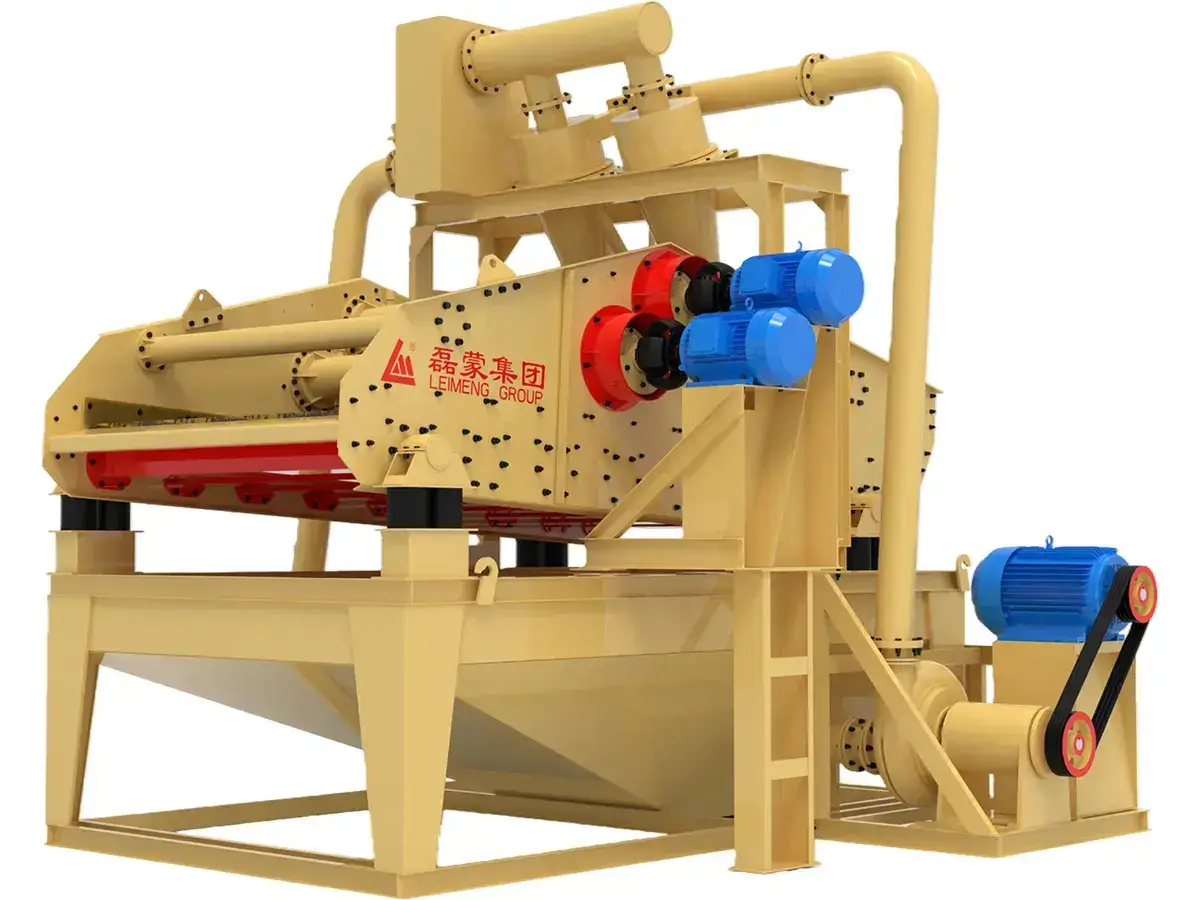

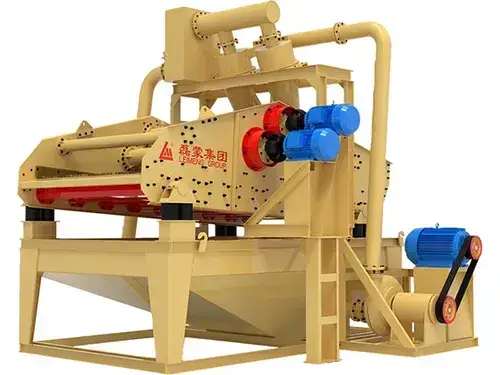

ZKX Series Fine Sand Recovery Machine
Fine Sand Recovery and Dewatering System
The ZKX Series fine sand recovery machine is designed to recover fine sand from slurry and wastewater in wet sand washing systems. It helps reduce fine sand loss, improve sand grading and increase the recovery rate of usable materials.
It is suitable for manufactured sand production lines, aggregate washing plants, hydropower projects, glass raw material processing and coal slime recovery applications.

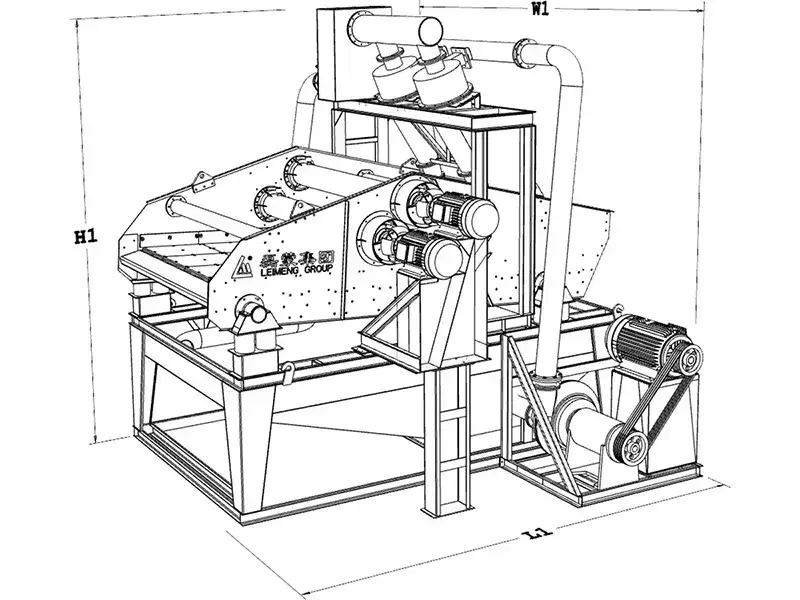

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
5105 | 4305 | 4890 |
| |
5105 | 4505 | 4890 |
| |
5105 | 4705 | 5035 |
| |
5105 | 4905 | 5035 |
| |
5105 | 4505 | 4890 |
| |
5105 | 4705 | 4890 |
| |
5105 | 4905 | 4890 |
| |
6605 | 4505 | 4890 |
| |
5905 | 5505 | 4890 |
Technical Parameters
| Model | Dewatering screen | Cyclone | Slurry pump | Capacity (t/h) | ||
| Screen size (mm) | Power (kW) | Throughput (m³/h) | Power (kW) | |||
| 1800×4500 | 11kW-6×2 | 350#X2 | 200 | 37kW-6 | 96-128 | |
| 2000×4500 | 15kW-6×2 | 350#X2 | 200 | 37kW-6 | 120-160 | |
| 2200×4500 | 15kW-6×2 | 350#X2 | 200 | 37kW-6 | 144-192 | |
| 2400×4500 | 18.5kW-6×2 | 350#X2 | 200 | 37kW-6 | 152-208 | |
| 2000×4500 | 15kW-6×2 | 500#X2 | 400 | 55kW-6 | 112-160 | |
| 2200×4500 | 15kW-6×2 | 500#X2 | 400 | 55kW-6 | 144-192 | |
| 2400×4500 | 18.5kw-6×2 | 500#X2 | 400 | 55kW-6 | 152-208 | |
| 2400×6000 | 18.5kW-6×2 | 350#X4 | 400 | 55kW-6 | 176-240 | |
| 3000×5250 | 22KW-6×2 | 500#X2 | 400 | 75kW-6 | 240-288 | |
