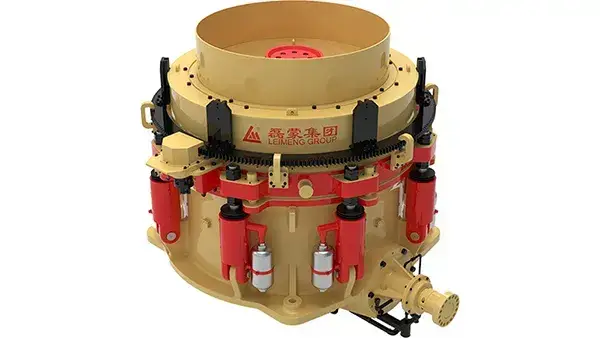

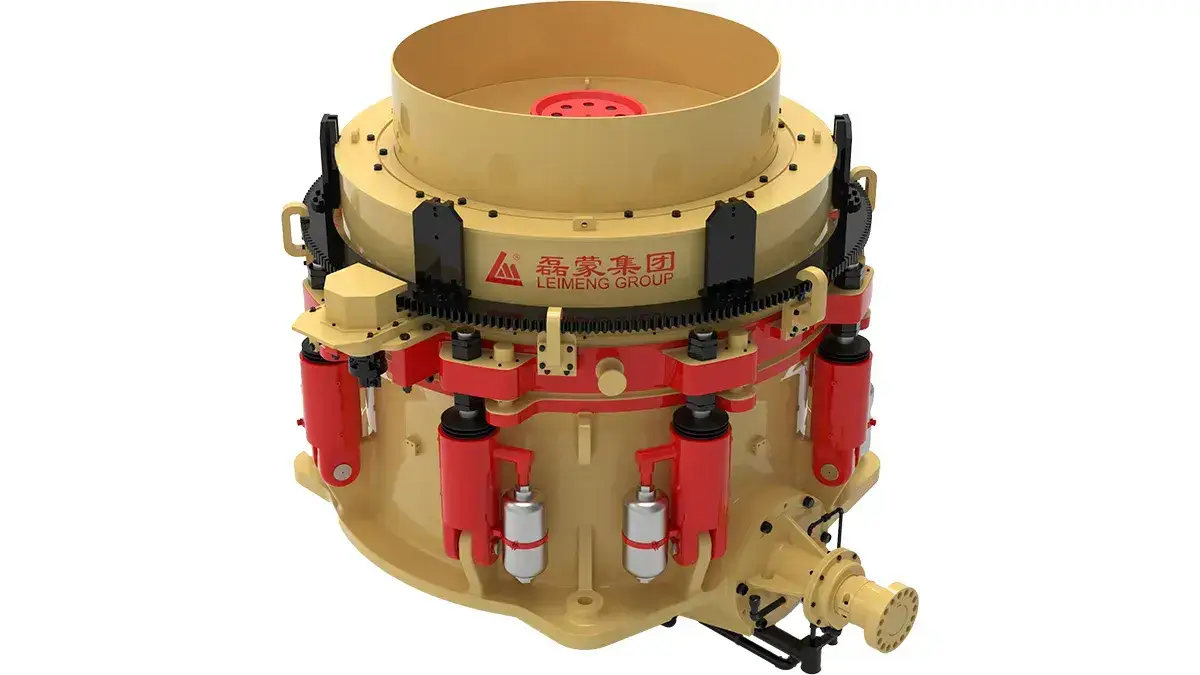

H Series Cone Crusher

(Multi-Cylinder, Secondary Crushing)

The H Series multi-cylinder hydraulic cone crusher is designed for secondary crushing in quarry, mining and aggregate production. It handles medium-hard to hard materials such as granite, basalt, river stone, limestone and metal ores.

With an optimized crushing chamber, hydraulic adjustment and intelligent control, it delivers stable performance, high efficiency and consistent product shape.

Its multi-cylinder hydraulic design enhances overload protection, reduces downtime and ensures reliable continuous operation.

Request a Quote

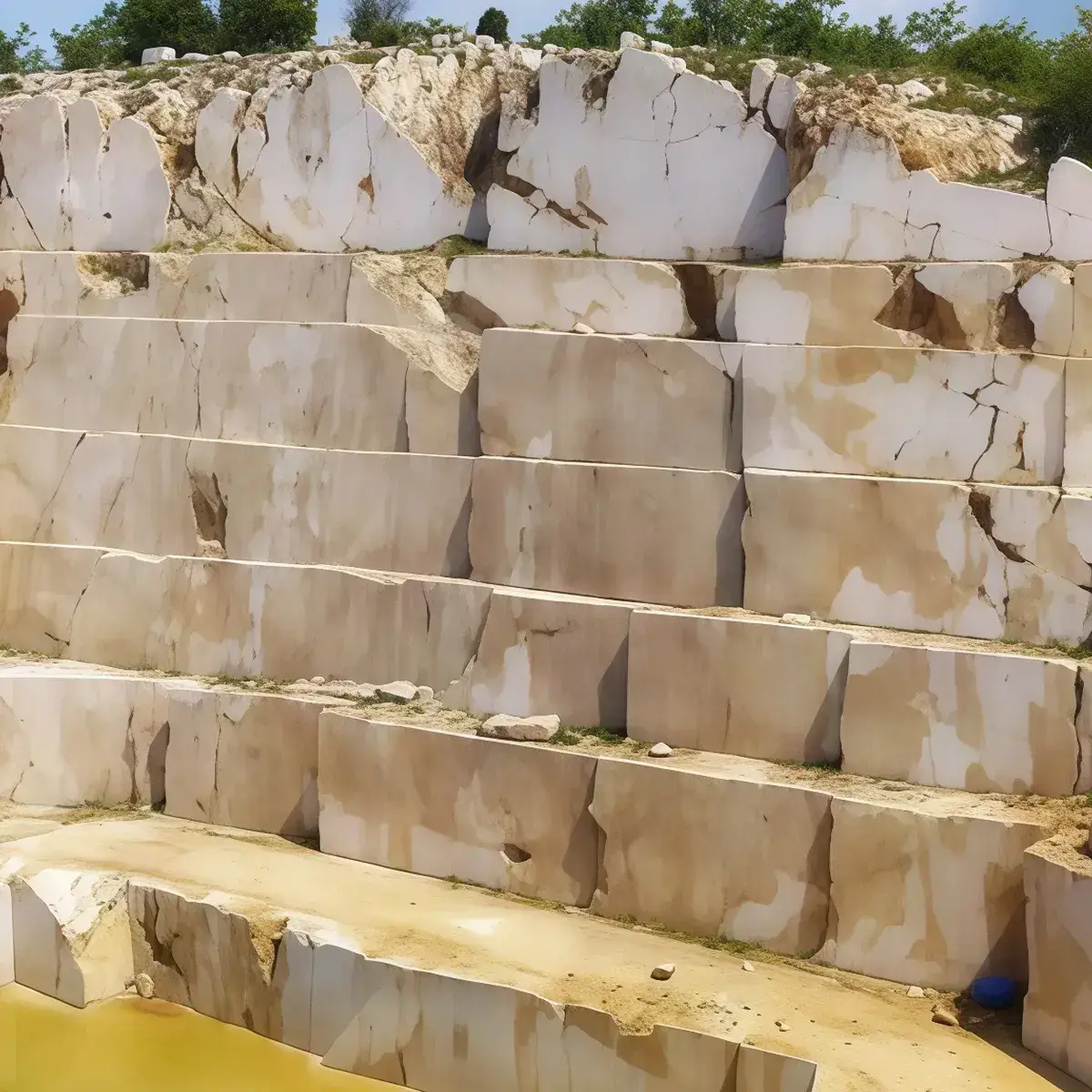

Applicable Materials
  • Metal Ores
  • Non-Metal Ores
Features
  • Optimized Crushing Chamber Design

    The optimized chamber design improves product shape, increases the proportion of cubical particles and reduces flaky particles, while supporting higher throughput.

  • Efficient Power Transmission

    The optimized transmission and crushing mechanism improve the conversion of motor power into crushing force, helping reduce friction, heat and bearing wear.

  • Enhanced Load Capacity

    Strengthened key components allow the crusher to handle hard and abrasive materials, improving durability under heavy-duty operating conditions.

  • Heavy-Duty Cast Steel Frame

    The high-strength cast steel frame withstands harsh working conditions and helps extend service life.

  • Hydraulic Control System

    Hydraulic adjustment and overload protection simplify discharge setting, improve equipment safety and reduce downtime.

  • Automation Control System

    99.The intelligent control system simplifies operation, improves stability and reduces manual intervention.

  • Replaceable Liners

    100.Replaceable liners support different crushing requirements and make it easier to switch between coarse and fine crushing applications.

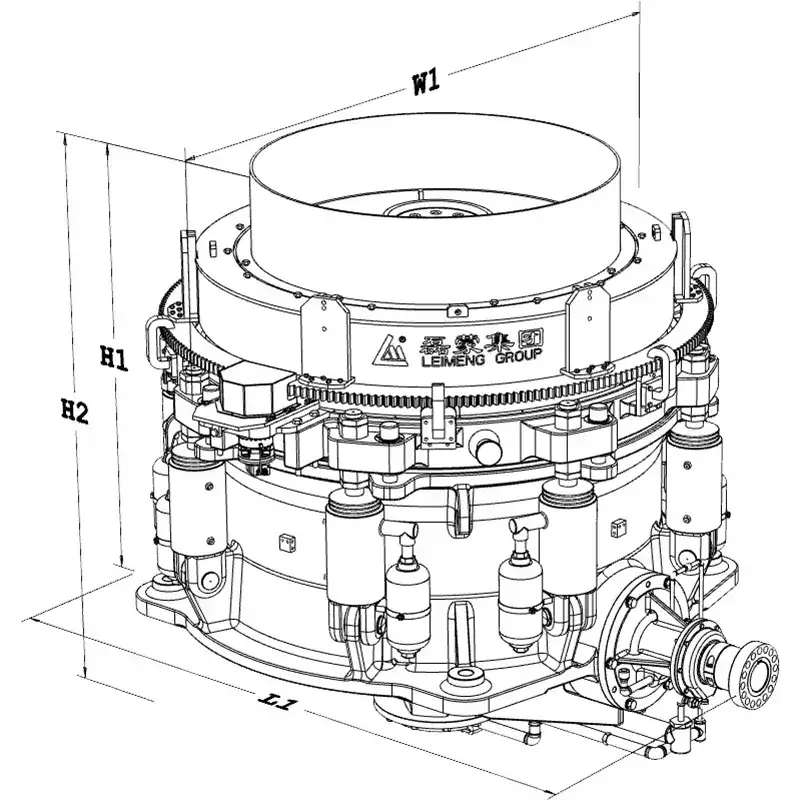

Dimensions
Model H700 H900
Length L1 (mm) 5080 5020
Width W1 (mm) 4080 5055
Height H1 (mm) 3300 3310
Height H2 (mm) 4320 4330
Dimensions
Technical Parameters
Model Cavity Max. feeding size (mm) Feed opening (mm) Discharging size (mm) Capacity (t/h) Power (kW)
Closed side Open side
H700 Short head type Fine 180 51 105 6-16 315-475 450
Medium 180 95 133 10-19 410-590 450
Coarse 180 127 178 13-25 525-695 450
Extra coarse 180 152 203 16-25 588-756 450
Standard type Fine 400 253 278 19-38 565-840 450
Medium 400 303 334 25-51 705-1160 450
Coarse 400 334 369 31-89 910-1450 450
Extra coarse 400 425 460 60-130 1000-1550 450
H900 Short head type Fine 200 60 120 10-16 560-670 710
Medium 200 100 150 13-19 670-810 710
Coarse 200 130 190 16-22 770-1000 710
Extra coarse 200 160 220 19-25 920-1190 710
Standard type Fine 450 245 330 45-250 700-1200 710
Medium 450 280 375 60-250 1050-1900 710
Coarse 450 380 465 70-250 1300-2500 710
Extra coarse 450 460 495 80-250 1500-2600 710

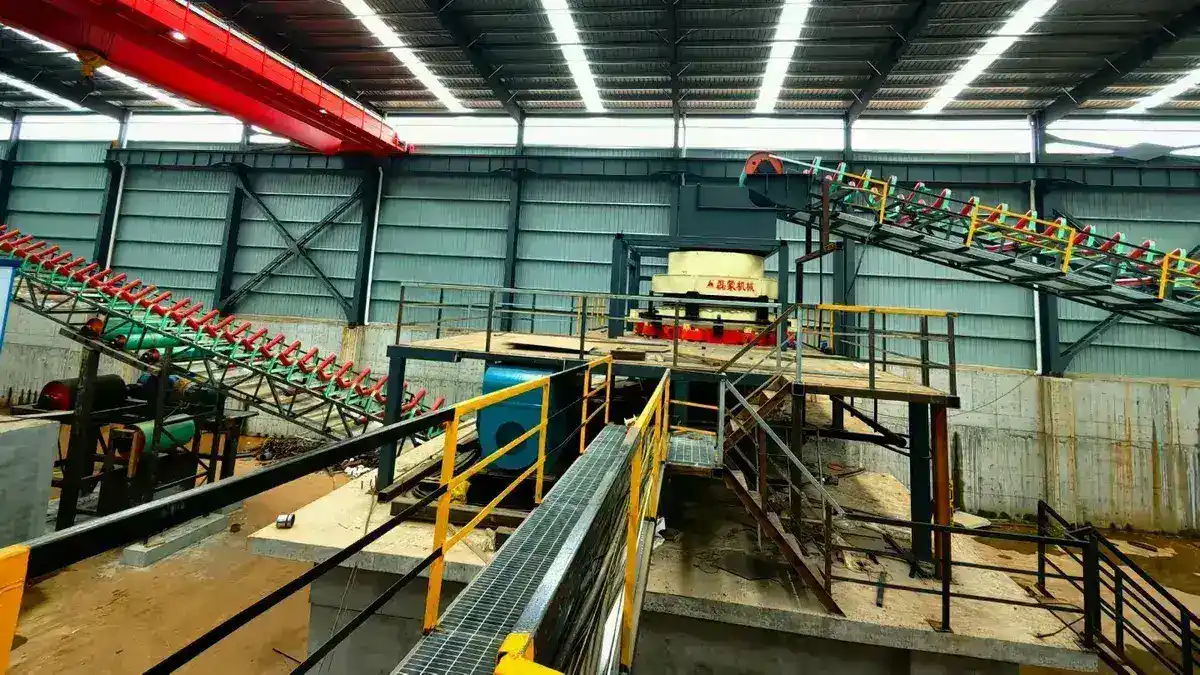

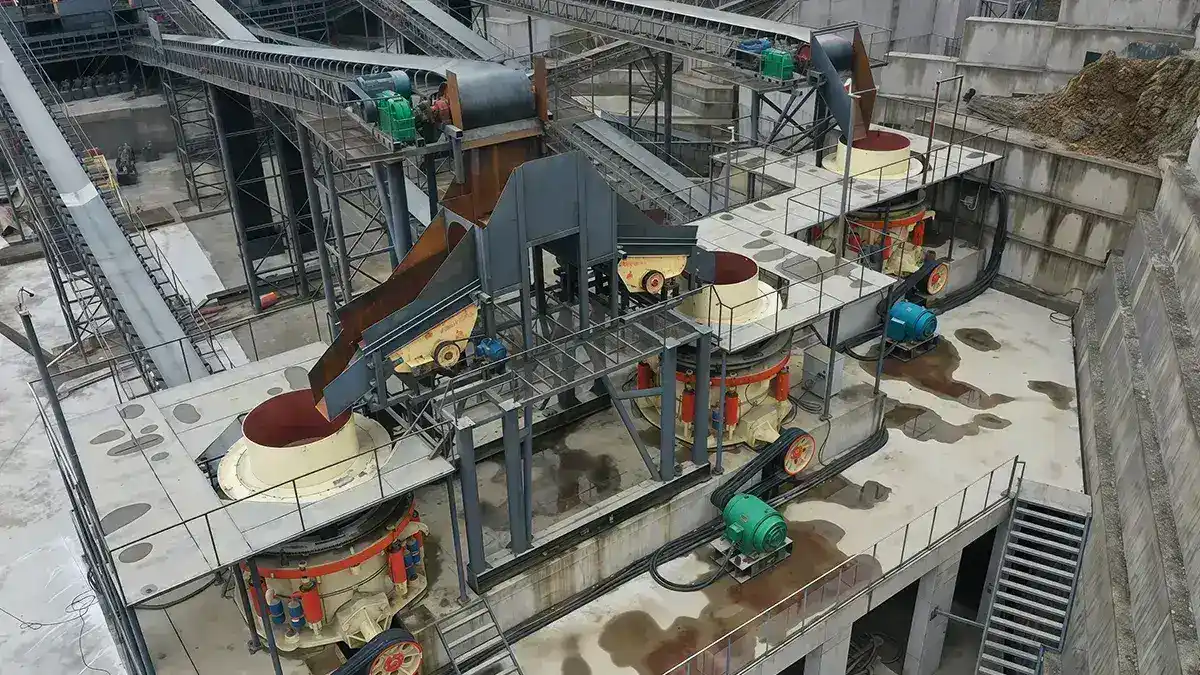

Projects

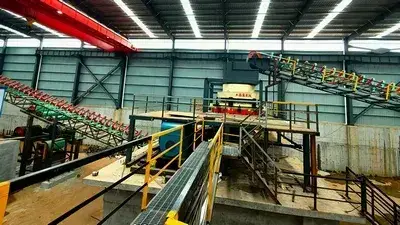

Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)

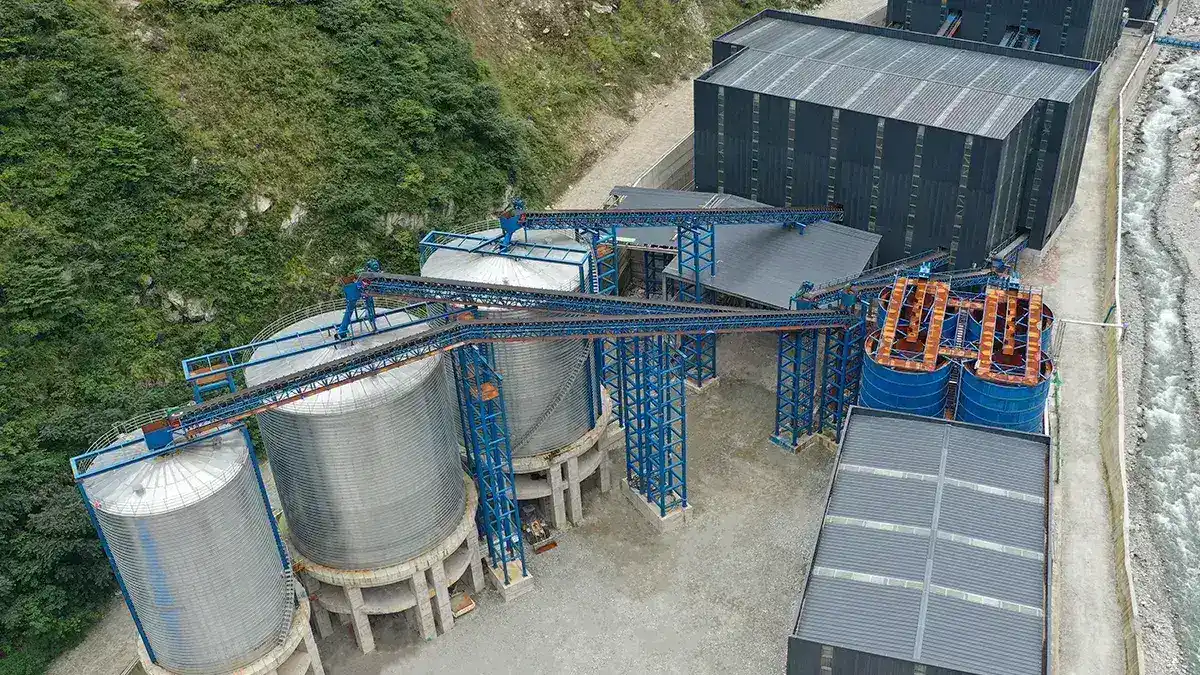

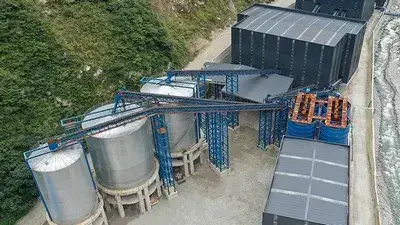

EPC Aggregate Plant Project in Wenchuan, SichuanEPC Aggregate Plant Project in Wenchuan, Sichuan
