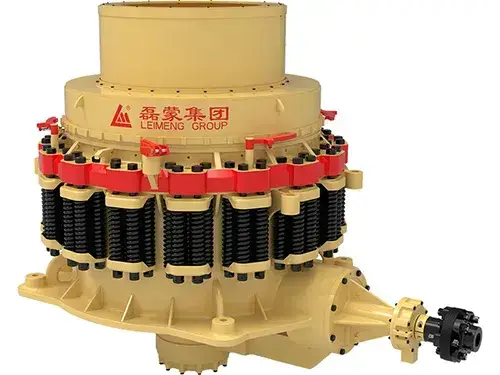

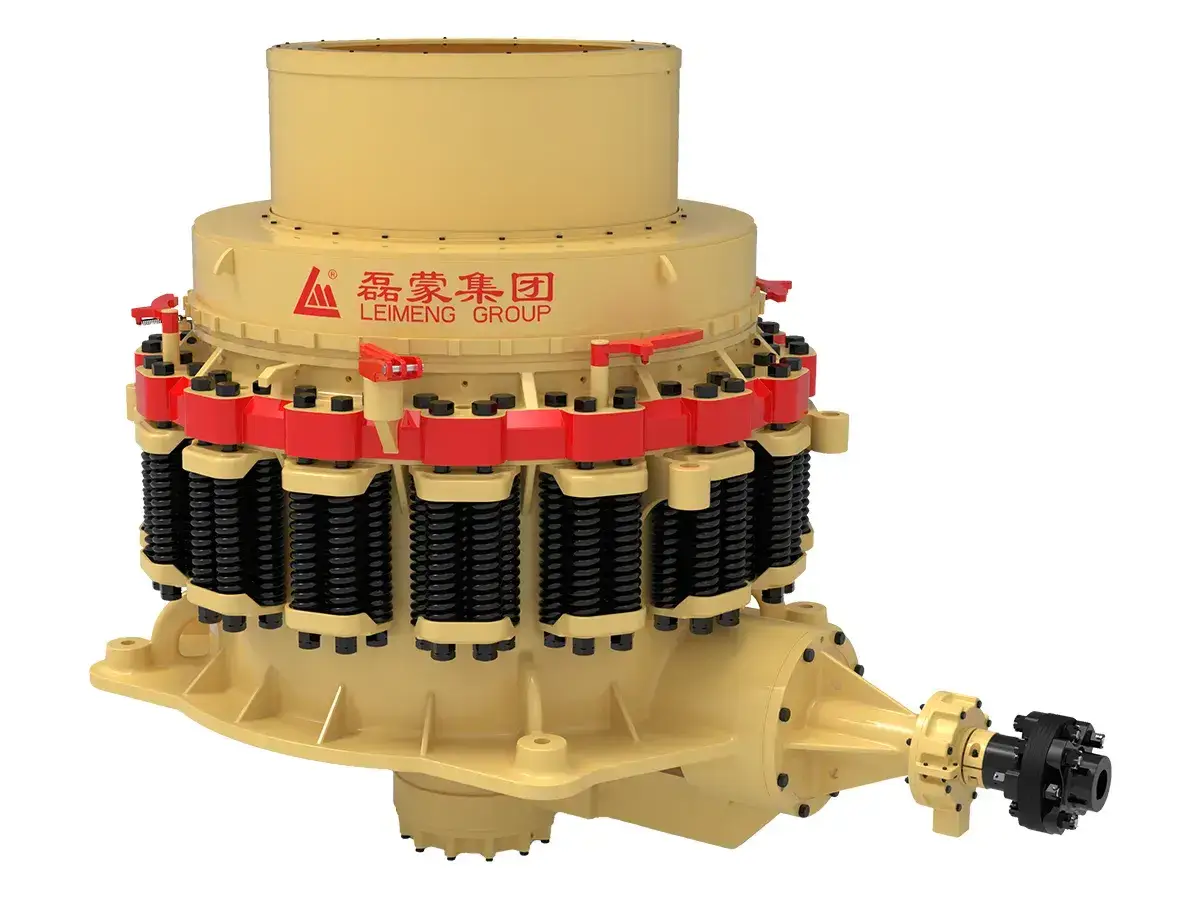

PYB/PYZ/PYD Series Cone Crusher
The PYB/PYZ/PYD Series cone crusher is designed for secondary and tertiary crushing in quarry, mining and aggregate production lines. It is suitable for medium-hard to hard materials such as granite, basalt, limestone, river stone and metal ores.
Equipped with a reliable spring protection system and adjustable discharge opening, it delivers stable performance and consistent output size.
Multiple cavity options are available for coarse, medium and fine crushing, making it suitable for various stone crushing and aggregate production needs.
Applicable Materials
- Metal Ores
- Non-Metal Ores

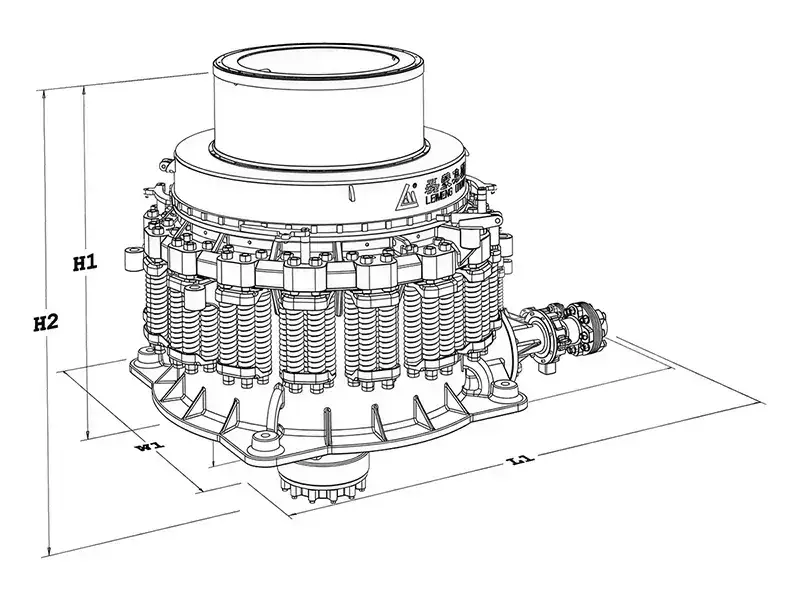

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
2692 | 1640 | 2350 |
| |
2692 | 1640 | 2350 |
| |
2692 | 1640 | 2350 |
| |
2790 | 1878 | 2844 |
| |
2790 | 1878 | 2844 |
| |
2790 | 1878 | 2844 |
| |
3910 | 2894 | 3809 |
| |
3910 | 2894 | 3809 |
| |
3910 | 2894 | 3809 |
| |
6640 | 2900 | 5057 |
| |
6640 | 2900 | 5057 |
| |
6640 | 2900 | 5057 |
Technical Parameters
| Model | Max. feeding size (mm) |
Discharging size (mm) |
Moving cone diameter (mm) |
Shaft speed (r/min) |
Capacity (t/h) |
Power (kW) |
| |
115 | 30-50 | 900 | 333 | 50-90 | 55 |
| |
60 | 15-30 | 900 | 333 | 20-65 | 55 |
| |
50 | 5-15 | 900 | 333 | 15-50 | 55 |
| |
145 | 30-50 | 1200 | 300 | 110-168 | 110 |
| |
100 | 20-50 | 1200 | 300 | 60-135 | 110 |
| |
50 | 10-20 | 1200 | 300 | 42-105 | 110 |
| |
215 | 60-100 | 1750 | 245 | 400-600 | 180 |
| |
185 | 30-50 | 1750 | 245 | 200-350 | 180 |
| |
85 | 15-30 | 1750 | 245 | 120-200 | 180 |
| |
300 | 100-200 | 2200 | 220 | 650-1000 | 330 |
| |
230 | 70-150 | 2200 | 220 | 480-800 | 330 |
| |
100 | 35-60 | 2200 | 220 | 320-450 | 330 |
