Heavy Hammer Crusher

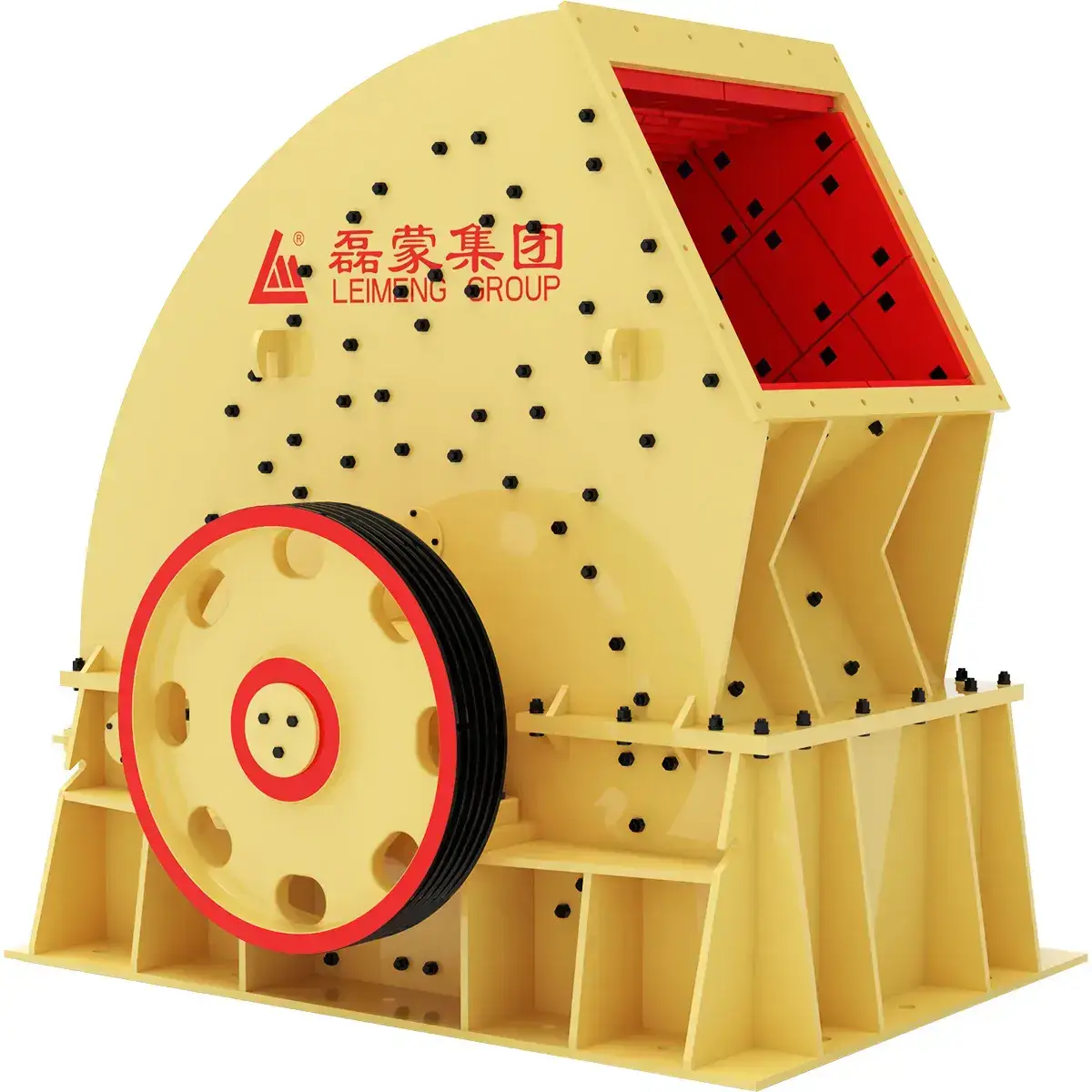

PCZ Series Heavy Hammer Crusher

The PCZ Series heavy hammer crusher is designed for primary crushing of medium-hard and brittle materials with compressive strength below 200 MPa. Depending on the model and material conditions, it can handle large feed sizes and achieve size reduction in a single stage.

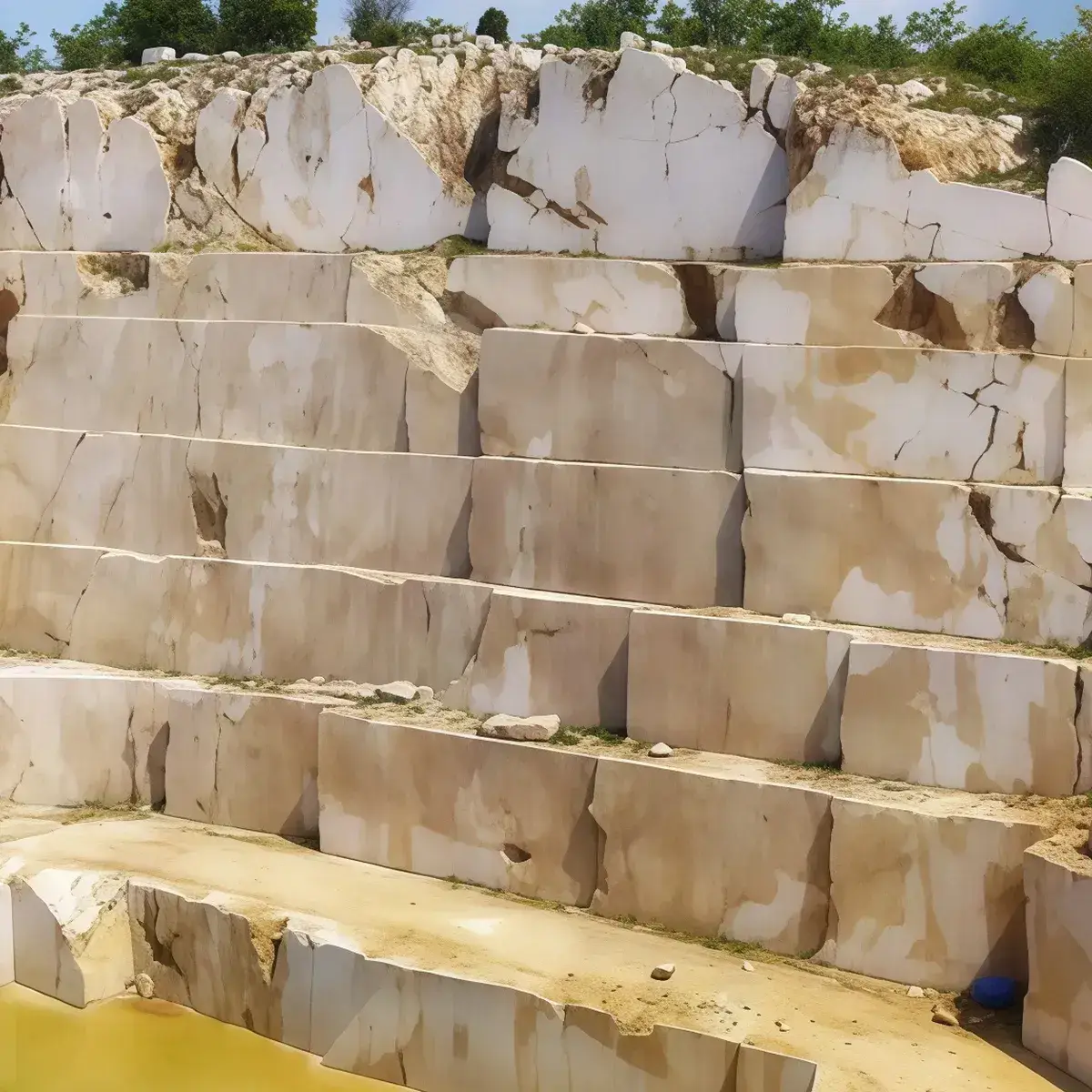

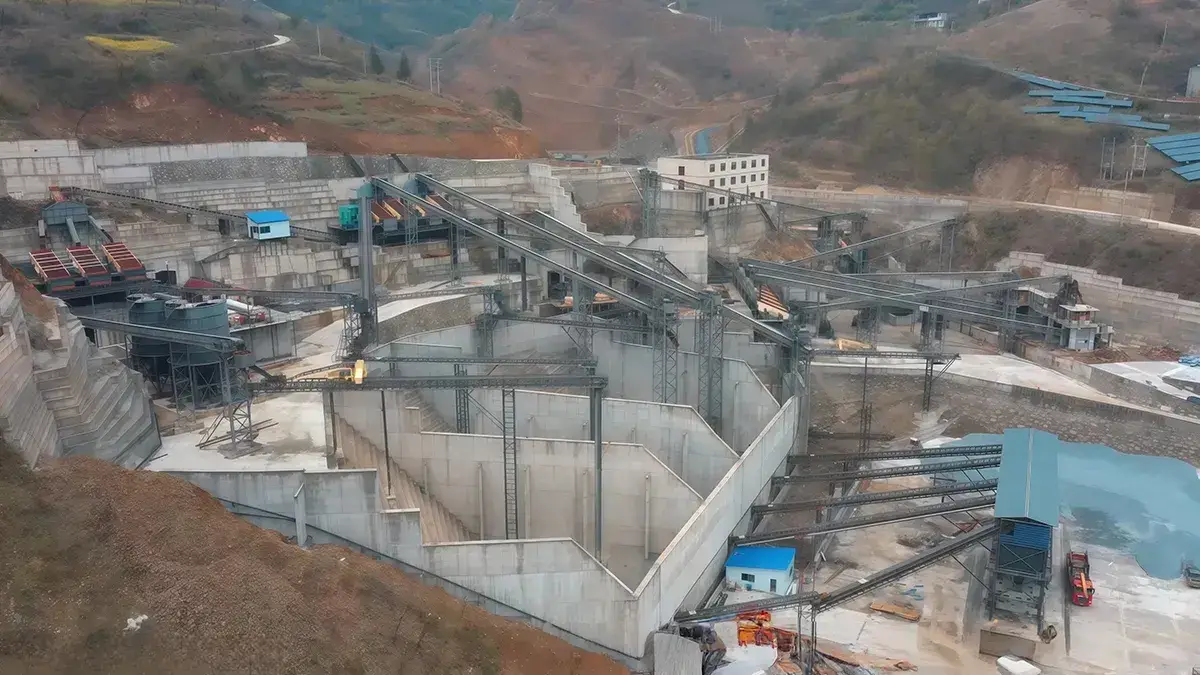

Suitable for limestone, gypsum, coal gangue, sandstone, shale and similar materials, it is widely used in building materials, aggregate production, cement and mining applications.

Featuring a heavy-duty rotor, wear-resistant hammers and a large crushing chamber, it offers high capacity, a simple structure and reliable operation.

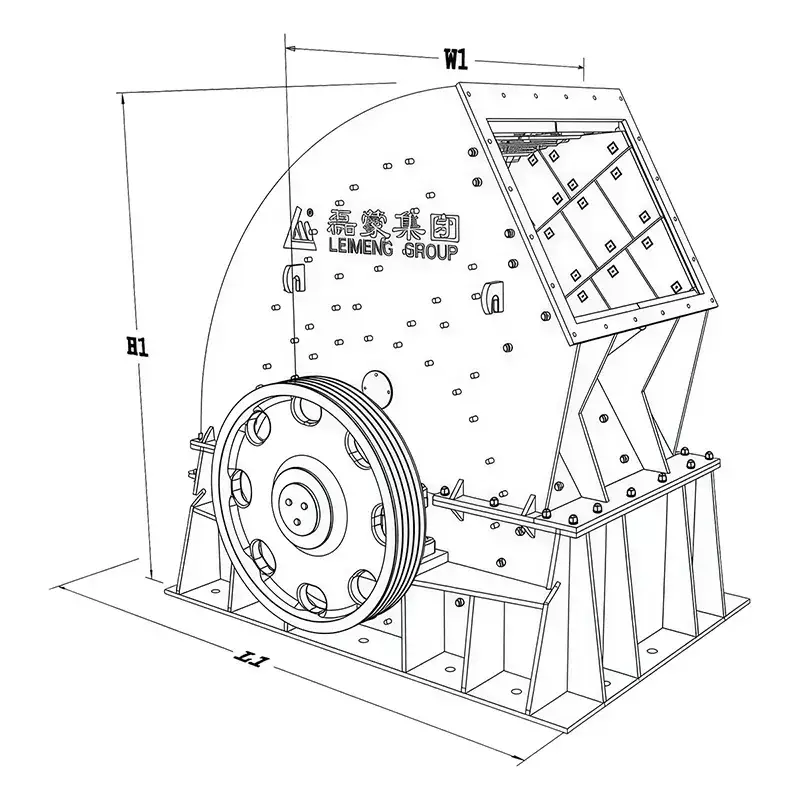

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
PCZ1310 2950 2250 2495
PCZ1512 3260 2624 2750
PCZ1615 3667 2937 3436
PCZ1815 3700 2980 3515
PCZ1620 3667 3200 3436
PCZ1820 3700 3270 3515
POZ2020 3730 3340 3595
Dimensions
Technical Parameters
Model Max. feeding size (mm) Rotor diameter × width (mm) Capacity
(t/h)
Power
(kW)
PCZ1310 ≦650 1310×1050 150-180 160
PCZ1512 ≦750 1500×1160 250-320 160×2
PCZ1615 ≦1000 1650×1452 420-500 220×2
PCZ1815 ≦1100 1850×1520 520-620 250×2
PCZ1620 ≦1200 1660×1900 800-1000 400×2
PCZ1820 ≦1200 1800×1964 1000-1200 450×2
POZ2020 ≦1200 1920×2000 1200-1600 500×2
