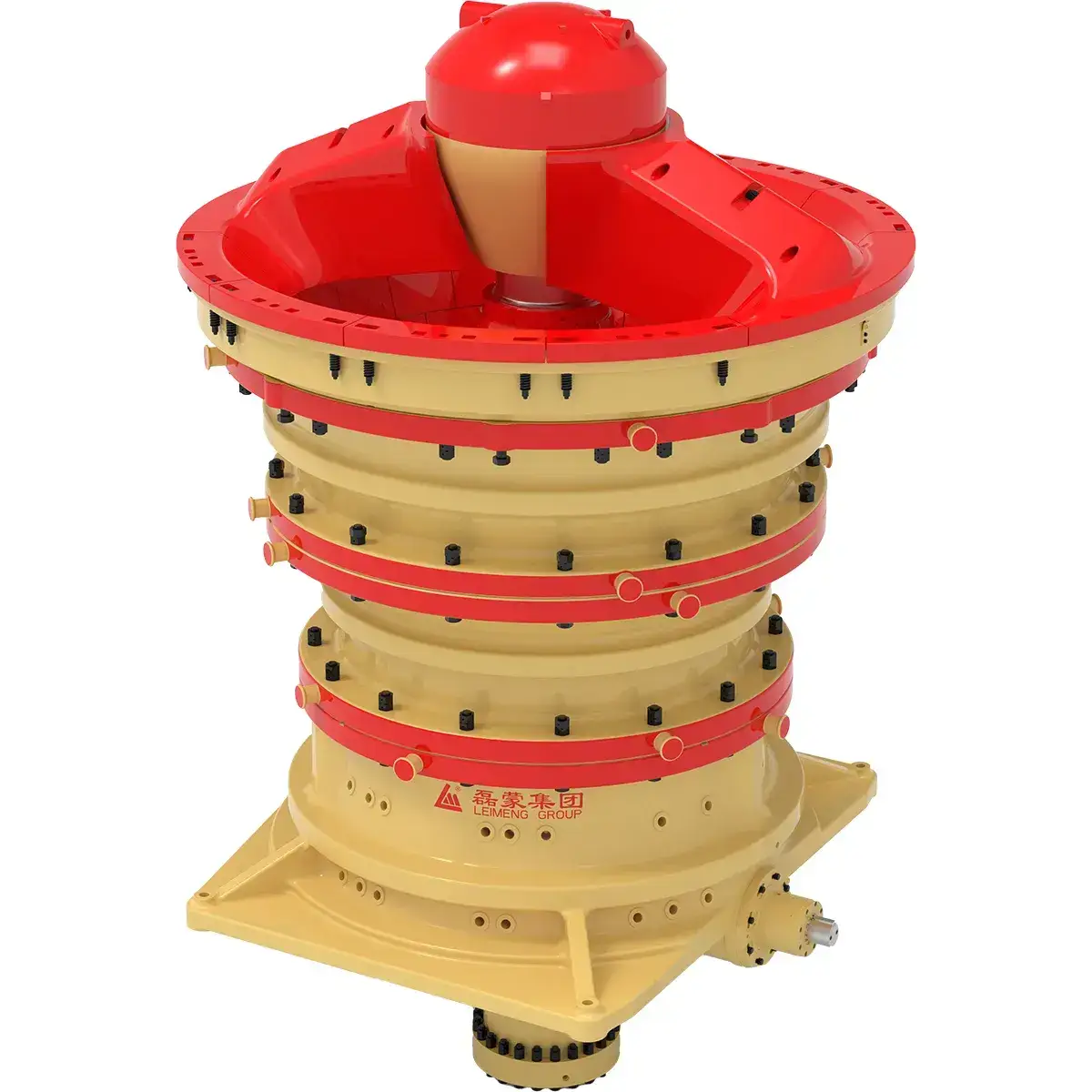

PXZ Series Hydraulic Gyratory Crusher
The PXZ Series hydraulic gyratory crusher is designed for primary crushing in medium and large-scale mining, quarry and aggregate production. It is suitable for hard rock, metal ores and other high-strength materials, offering high capacity and stable operation.
Compared with traditional jaw crushers, it handles larger feed sizes and delivers more uniform output. Its optimized crushing chamber improves throughput while reducing wear on key components.
With direct feeding, hydraulic adjustment and advanced control systems, it ensures efficient operation, easy maintenance and reliable continuous performance.
Applicable Materials
- Metal Ores
- Non-Metal Ores
Specifications
| Model | |||||
| Feed opening (mm) | 1065 | 1270 | 1400 | 1600 | 1600 |
| Max. feeding size (mm) | 900 | 1080 | 1200 | 1350 | 1350 |
| Adjustment range of discharge opening (mm) | 140-175 | 150-175 | 170-200 | 180-210 | 190-240 |
| Capacity (t/h) | 1800-2300 | 2000-2500 | 2500-3500 | 5000-6500 | 6000-8000 |
| Power(kW) | 450 | 450 | 500 | 750 | 800 |

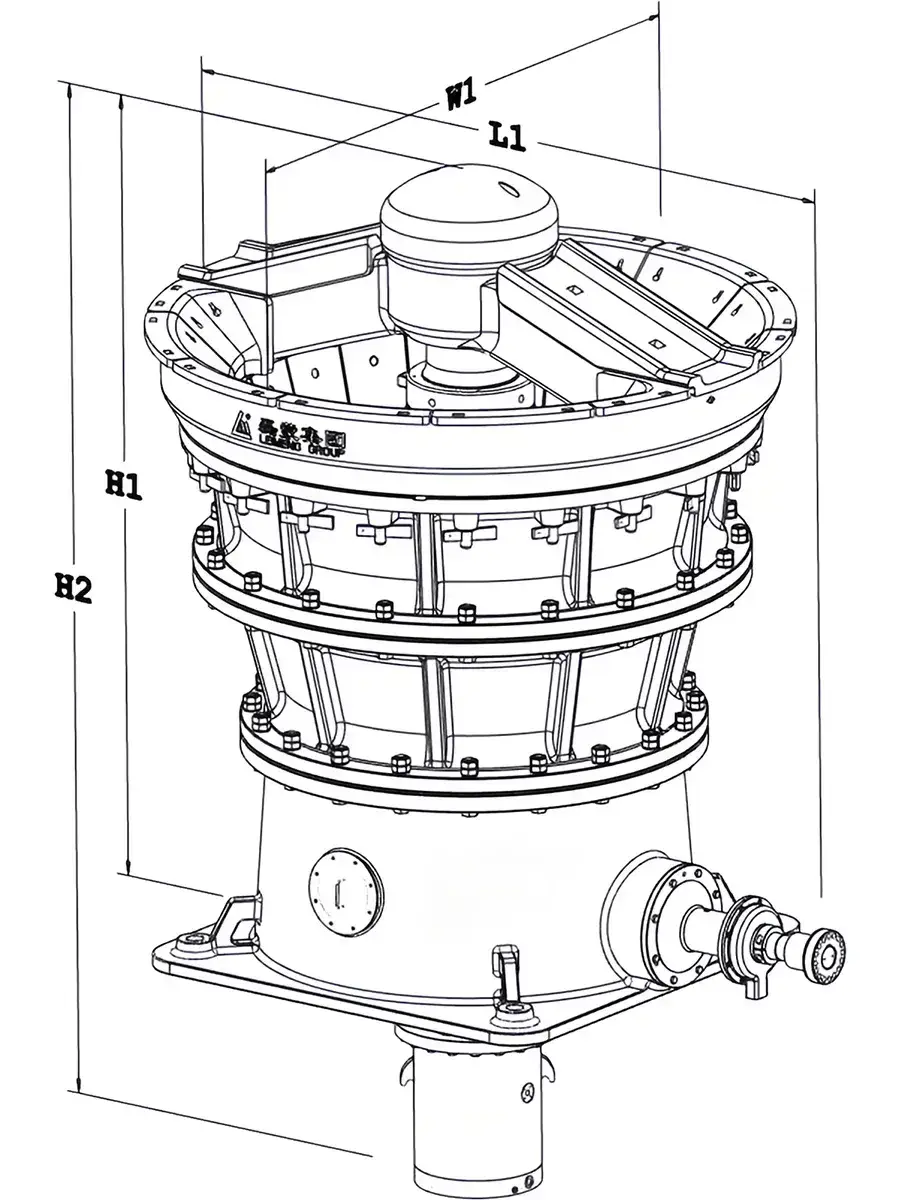

| Dimensions | |||||
| Length L1 (mm) | 4000 | 4000 | 6330 | 5740 | 5740 |
| Width W1 (mm) | 3937 | 4350 | 5360 | 5740 | 5740 |
| Height H1 (mm) | 4807 | 5525 | 6730 | 7185 | 7185 |
| Height H2 (mm) | 6372 | 7090 | 8700 | 9110 | 9110 |
