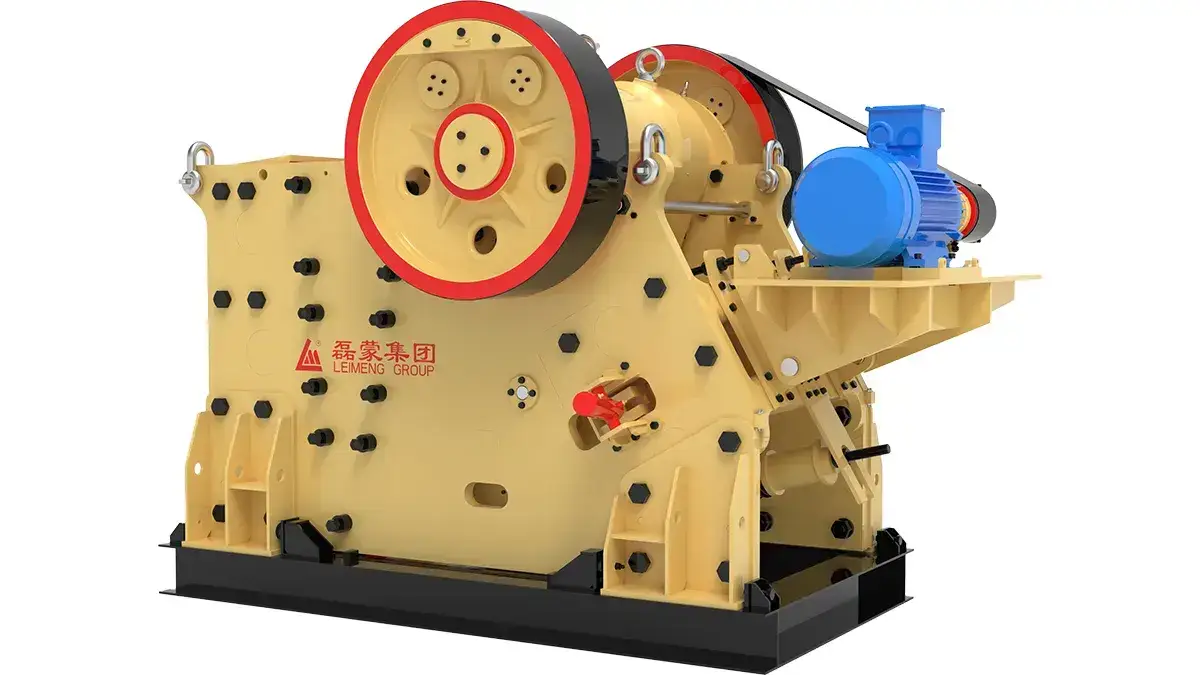

GC Series Jaw Crusher (European Type)
The GC Series European type jaw crusher is designed for primary and medium crushing in quarry, mining, aggregate and construction material processing. It is suitable for hard rock, limestone, granite, basalt, ores and other abrasive materials.

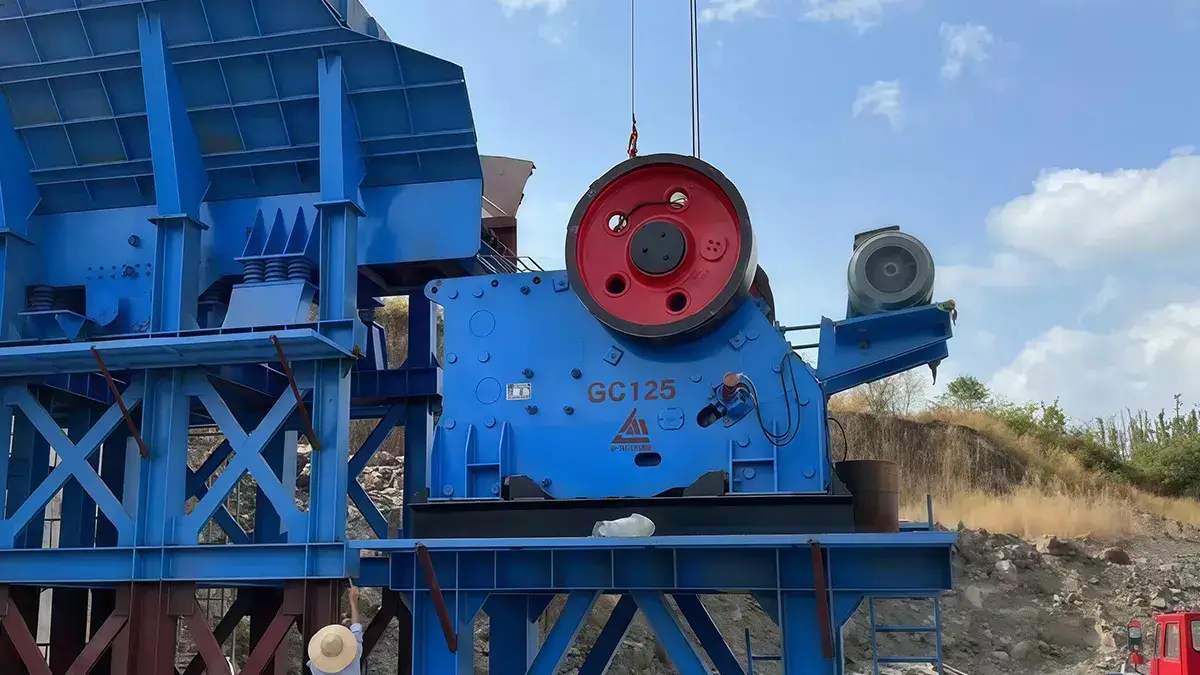

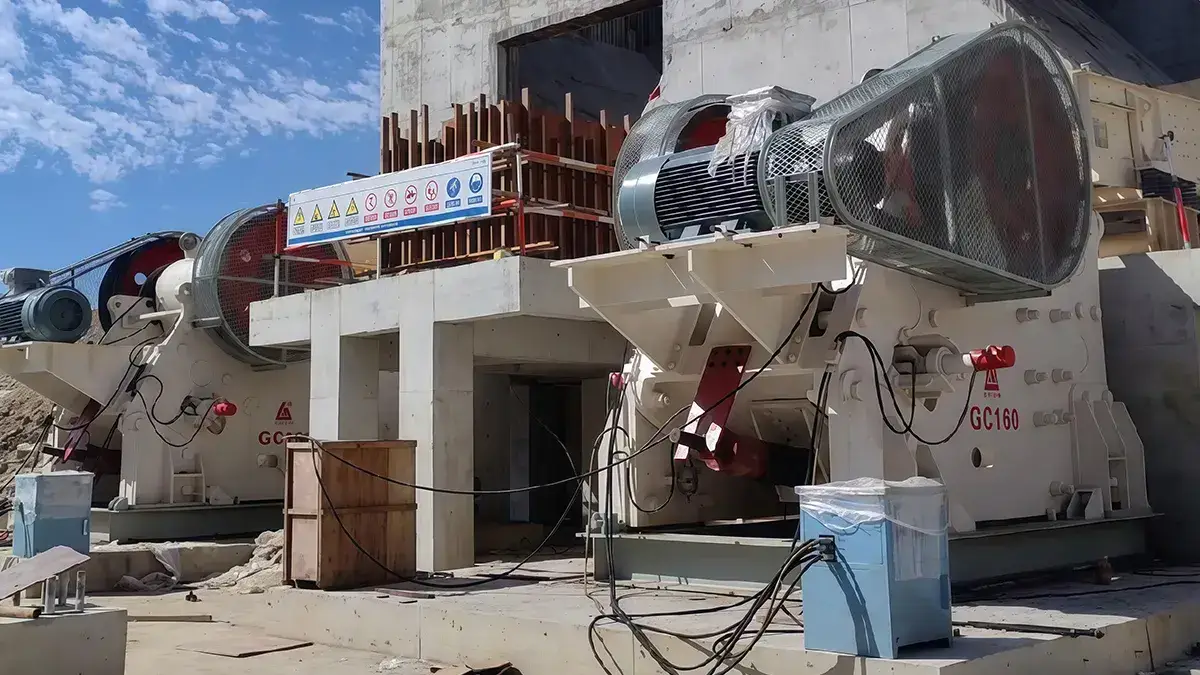

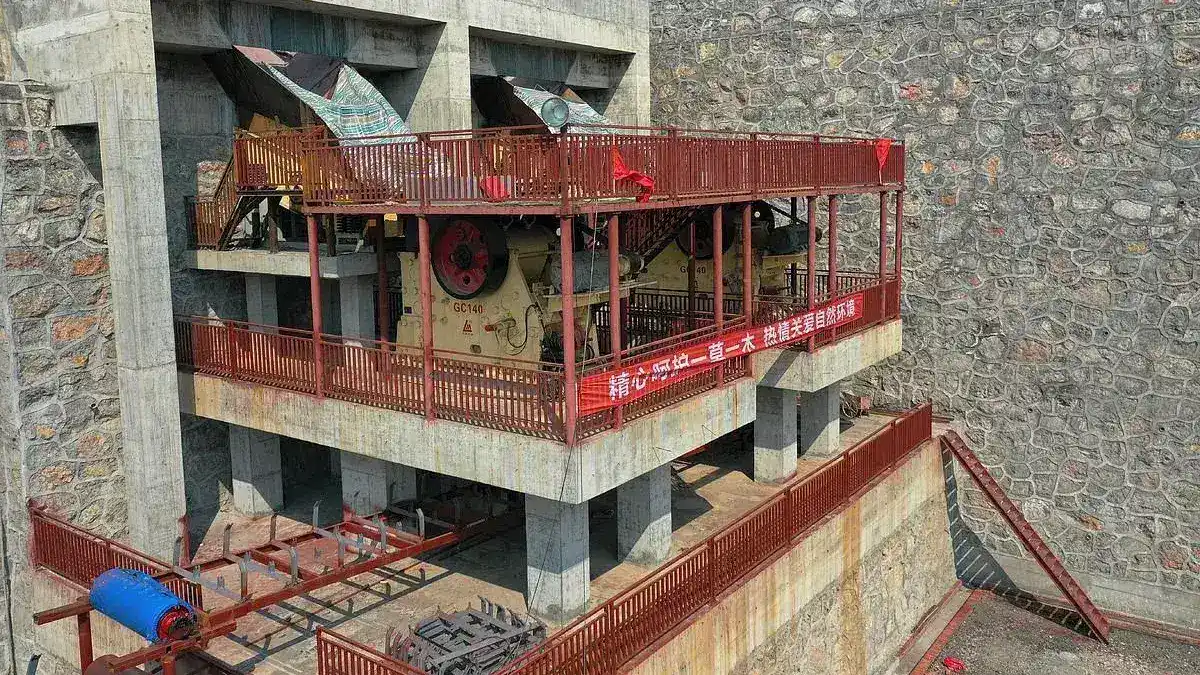

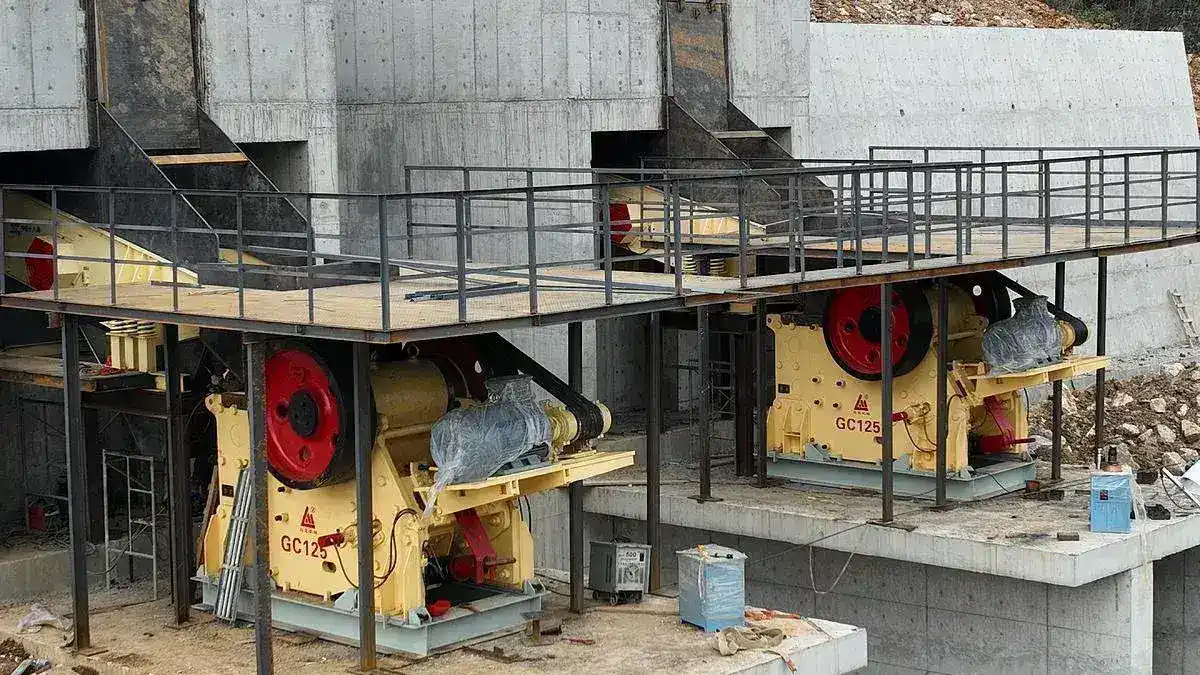

With an optimized crushing chamber, heavy-duty frame and reliable transmission system, the crusher delivers stable performance, uniform output size and easy maintenance. It can be used as primary crushing equipment in complete crushing production lines for highways, railways, mining, building materials and infrastructure projects.
- Metal Ores
- Non-Metal Ores
-
Modular Weld-Free Frame: A modular, weld-free frame makes the crusher lighter while improving impact resistance and structural stability.
-
High-Quality Bearings: Large, high-quality bearings help extend service life and improve operating reliability.
-
Heavy-Duty Main Components: The eccentric shaft is made of forged alloy steel, while the front and rear frames are made from high-strength cast steel.
-
Optimized Crushing Chamber: The optimized crushing chamber provides a better nip angle and stroke, helping improve the crushing ratio.
-
Higher Throughput: Improved rotational speed supports continuous crushing and helps increase production capacity.
-
Easy Discharge Adjustment: The discharge opening can be adjusted through hydraulic or mechanical systems, with wedge blocks accessible from both sides.

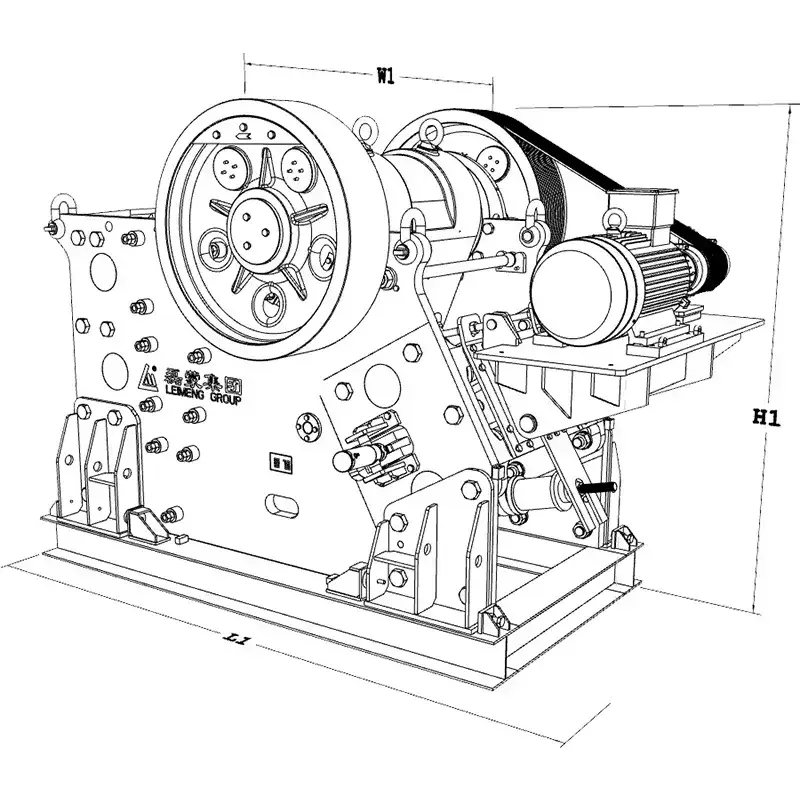

| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
3088 | 1998 | 1982 |
| |
3342 | 2022 | 2040 |
| |
3760 | 2022 | 2460 |
| |
4298 | 2334 | 2740 |
| |
4690 | 2776 | 3250 |
| |
4818 | 2902 | 3412 |
| |
5053 | 2822 | 3970 |
| |
5424 | 3325 | 3930 |
| |
5990 | 3825 | 4880 |
| Model | |||||||||
| Feed opening (mm) | 800×510 | 930×580 | 1060×700 | 1100×850 | 1250×845 | 1400×1070 | 1400×1200 | 1600×1200 | 2000×1500 |
| Discharging size (mm) | 40-175 | 60-175 | 70-200 | 70-200 | 100-250 | 125-250 | 125-250 | 150-300 | 175-300 |
| Capacity (t/h) | 65-380 | 120-455 | 155-580 | 190-625 | 290-845 | 385-945 | 400-1050 | 520-1275 | 760-2000 |
| Power (kW) | 75 | 90 | 110 | 160 | 185 | 220 | 280 | 315 | 400 |
