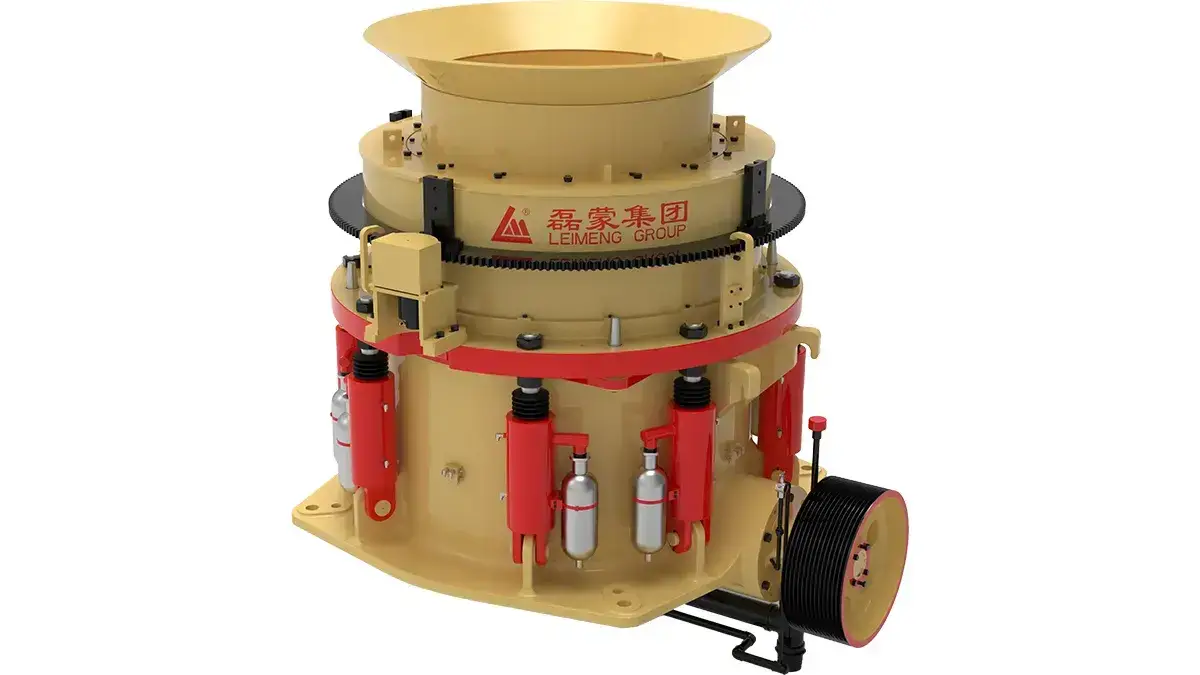

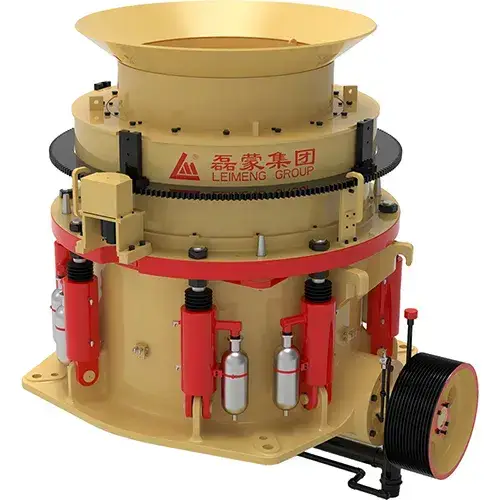

H(M)PY Series Cone Crusher

(Multi-Cylinder, Tertiary Crushing)

The H(M)PY Series multi-cylinder hydraulic cone crusher is designed for tertiary and fine crushing in mining, quarry and aggregate production lines. It is suitable for medium-hard to hard materials such as granite, basalt, limestone, metal ores and non-metallic minerals.

Equipped with hydraulic adjustment, tramp release, chamber clearing and automatic locking systems, the crusher helps reduce downtime and simplify operation.

Its optimized crushing chamber and stable hydraulic control support fine crushing, consistent product shape and reliable performance in continuous production.

Request a Quote
Applicable Materials
  • Metal Ores
  • Non-Metal Ores
Features
  • High-Strength Integral Cast Frame: The high-strength integral cast frame improves structural stability and supports reliable operation under heavy-duty working conditions.
  • Hydraulic CSS Adjustment: The hydraulic motor system allows remote and precise closed side setting (CSS) adjustment, helping improve operation efficiency and response speed.
  • Inter-Particle Crushing Principle: The optimized crushing chamber uses inter-particle crushing to improve throughput, reduce liner wear and produce well-shaped aggregates.
  • Backing-Free Liner Installation: Precision-machined seating surfaces support fast, backing-free installation of mantles and concaves, helping reduce maintenance time and replacement costs.
  • Reliable Hydraulic Locking: Multiple compact hydraulic cylinders provide uniform locking force for the adjustment sleeve, improving stability during continuous operation.
  • Dust Protection Sealing System: Labyrinth and spherical floating seals help block dust, protect internal components and extend lubricant service life.
  • Hydraulic Tramp Release and Chamber Clearing: The hydraulic tramp release and chamber clearing system helps clear uncrushable materials safely and reduce downtime.
  • Smooth Power Transmission: Spiral bevel gearing provides high load-carrying capacity, smooth transmission and stable operation.
  • Intelligent Control and Lubrication: The intelligent control system works with integrated lubrication to support real-time monitoring, easier operation and optimized crusher performance.

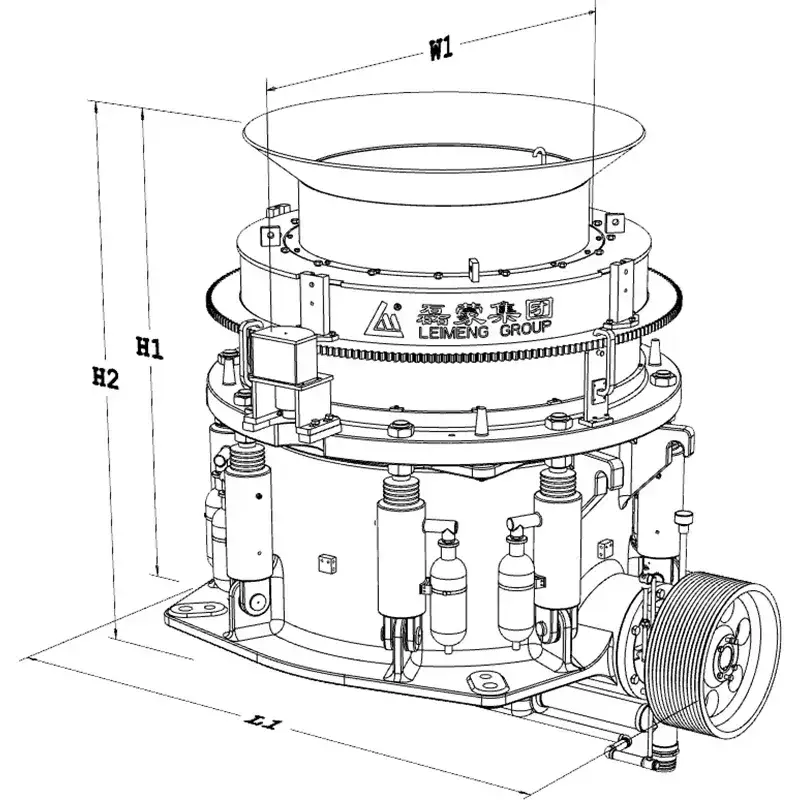

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm) Height H2 (mm)
HPY200 2180 2110 1875 2500
HPY300 2520 2350 2210 2910
HPY400 2850 2500 2390 3010
HPY500 3300 3080 2400 3250
HPY800 4000 3600 3310 4350
HPY900 4000 3600 3310 4350
MPY1000 4805 3900 3870 4540
MPY1250 5000 4700 5050 5790

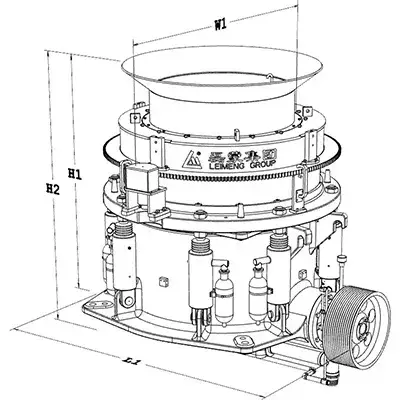

Dimensions
Technical Parameters
Model HPY200 HPY300 HPY400 HPY500 HPY800 HPY900 HPY1000 MPY1250
Max. feeding size (mm) 185 230 300 330 350 356 360 360
Discharging size (mm) 13 13 13 16 16 9 13 10
Capacity (t/h) 120-250 150-440 185-630 280-790 385-1200 341-1440 615-2420 590-3025
Power (kW) 160 220 315 400 630 710 800 900

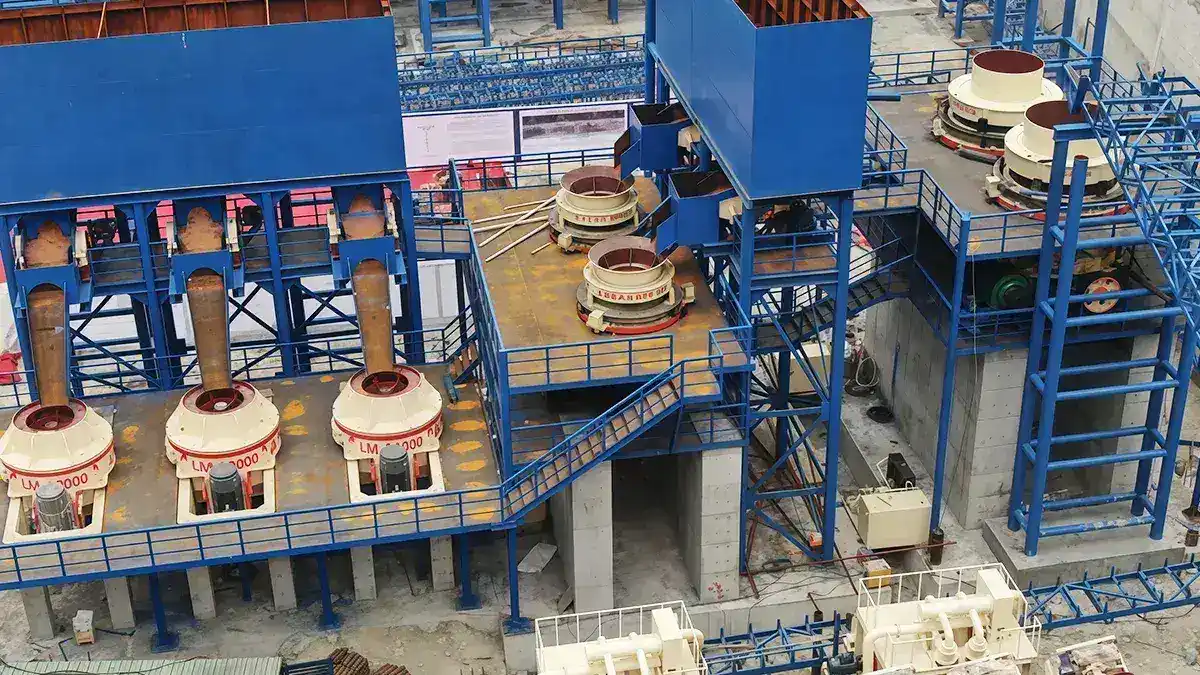

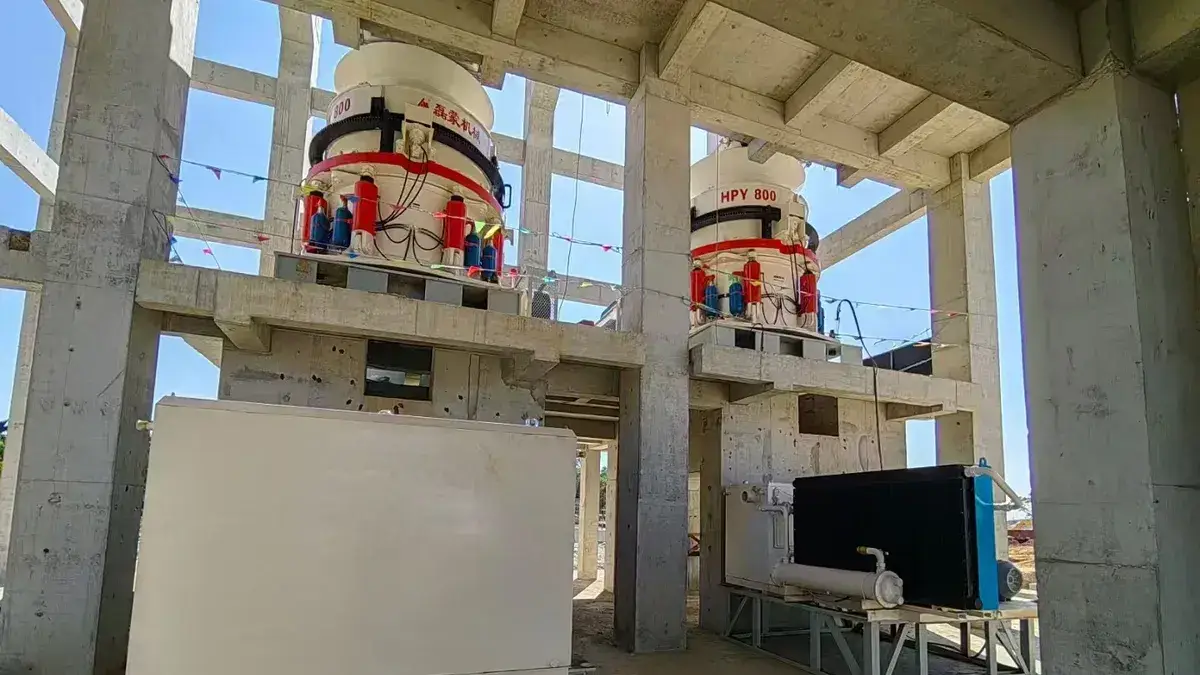

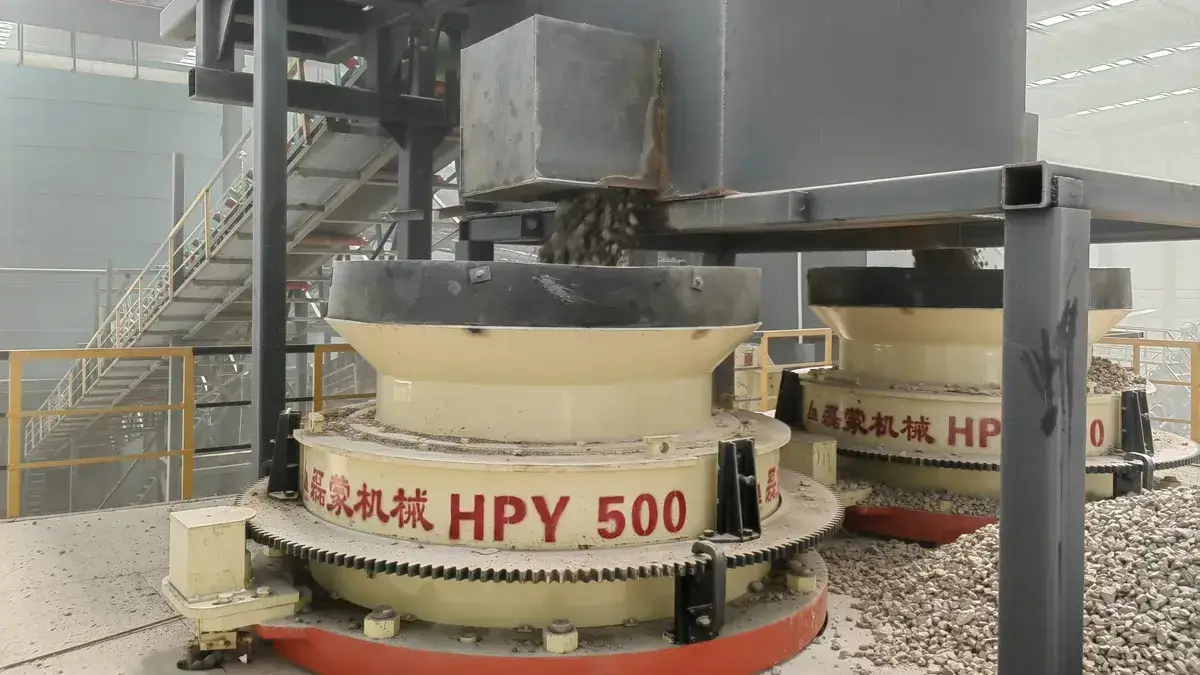

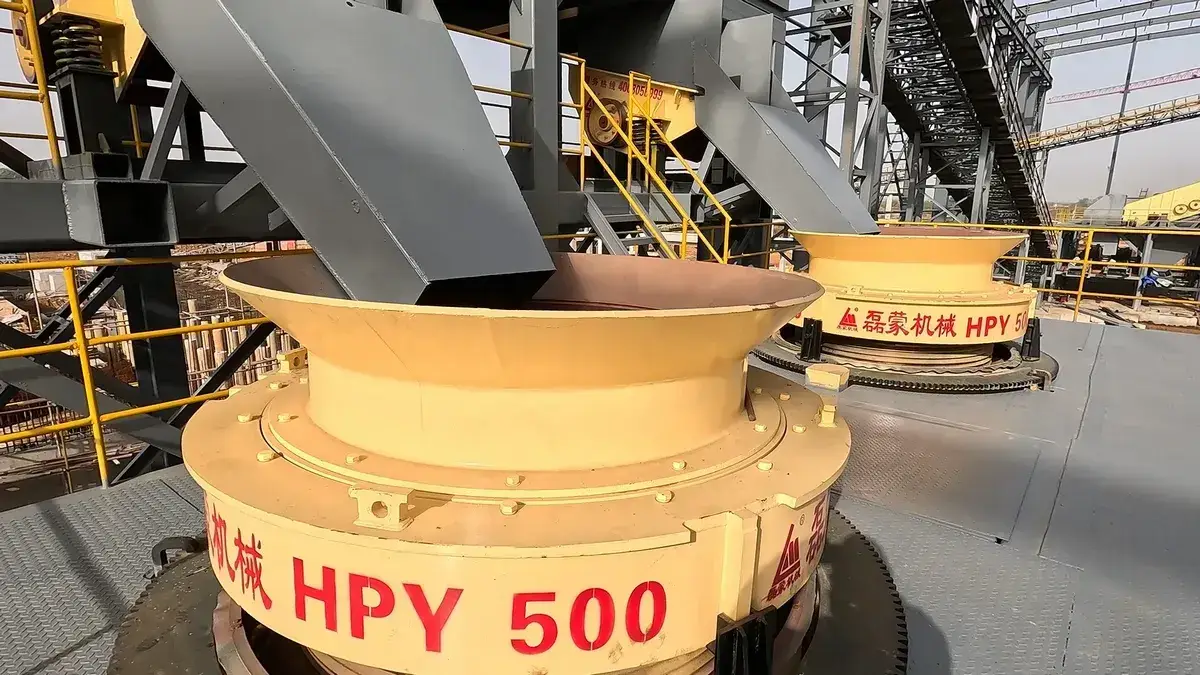

Projects
Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)

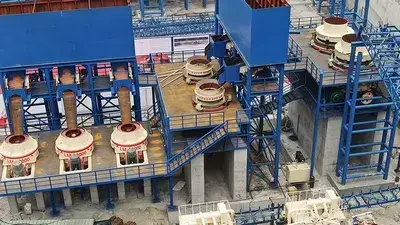

EPC Aggregate Plant Project in Wenchuan, SichuanEPC Aggregate Plant Project in Wenchuan, Sichuan
