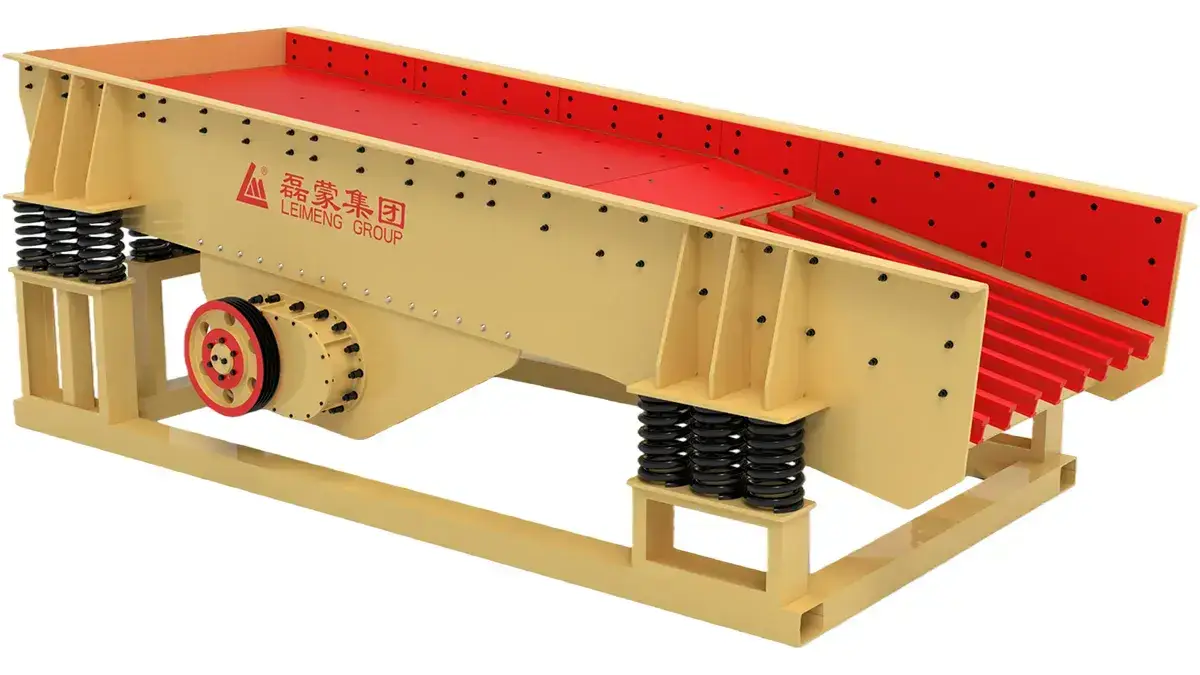

ZSW Series Vibrating Feeder
(Linear/Grizzly)
The ZSW series vibrating feeder is designed for continuous material feeding and coarse pre-screening before primary crushing. It is suitable for quarry, mining, aggregate production and sand production lines.
The grizzly section helps separate fines and undersized materials before they enter the crusher, improving crushing efficiency and reducing unnecessary wear.
Motor-driven and exciter-driven configurations are available to meet different site conditions and production requirements. With stable feeding performance and a robust structure, the ZSW Series supports reliable operation in heavy-duty crushing and screening systems.
Applicable Materials
- Metal Ores
- Non-Metal Ores

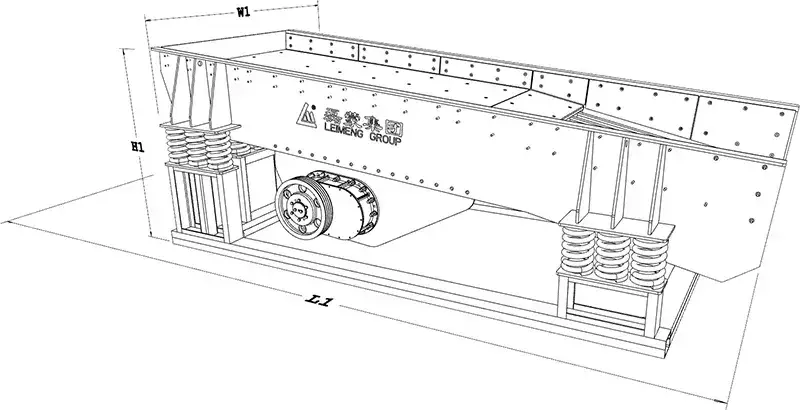

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
4905 | 1800 | 1735 |
| |
5900 | 1840 | 1900 |
| |
6000 | 2020 | 1970 |
| |
6000 | 2220 | 2020 |
| |
6000 | 2520 | 2020 |
| |
6000 | 2720 | 2020 |
Technical Parameters
| Model | ||||||
| Feeder trough size (mm) | 1100×4900 | 1100×5900 | 1300×6000 | 1500×6000 | 1800×6000 | 2000×6000 |
| Max. feeding size (mm) | 580 | 600 | 600 | 700 | 700 | 700 |
| Spindle speed (r/min) | 500-720 | 500-720 | 500-720 | 500-720 | 500-720 | 500-720 |
| Double amplitude (mm) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Installation inclination (°) | 5 | 5 | 5 | 5 | 5 | 5 |
| Capacity (t/h) | 120-280 | 200-350 | 400-560 | 400-800 | 800-1000 | 900-1100 |
| Power (kW) | 22 | 30 | 37 | 45 | 45 | 55 |
