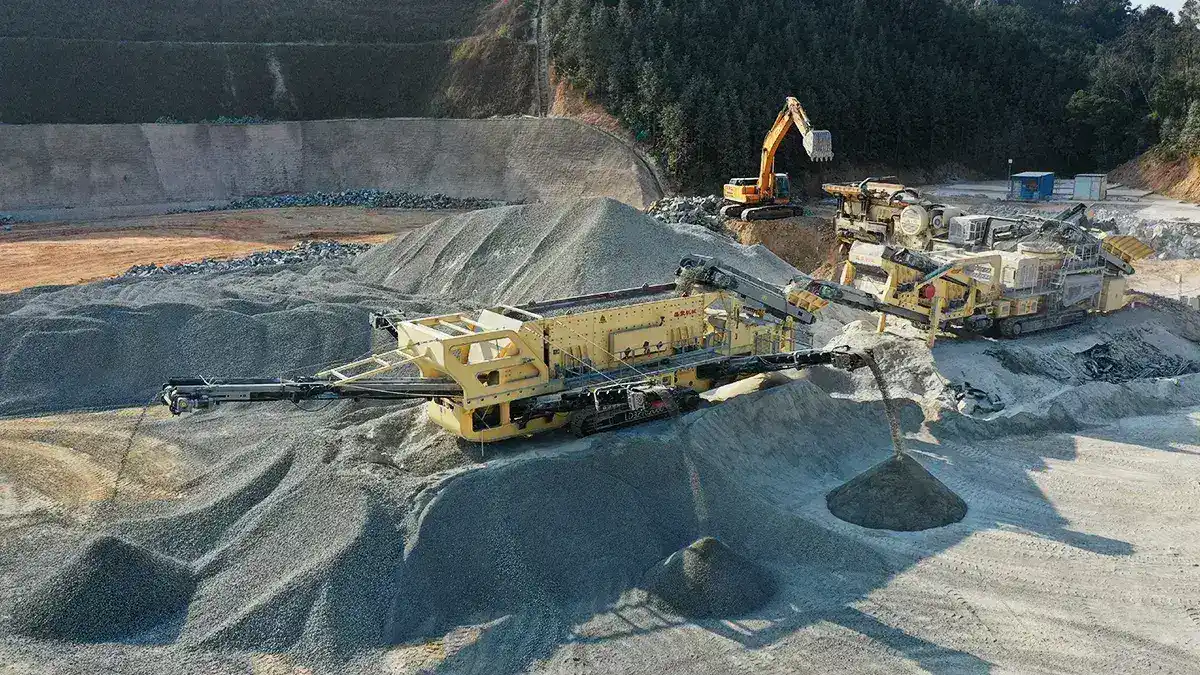

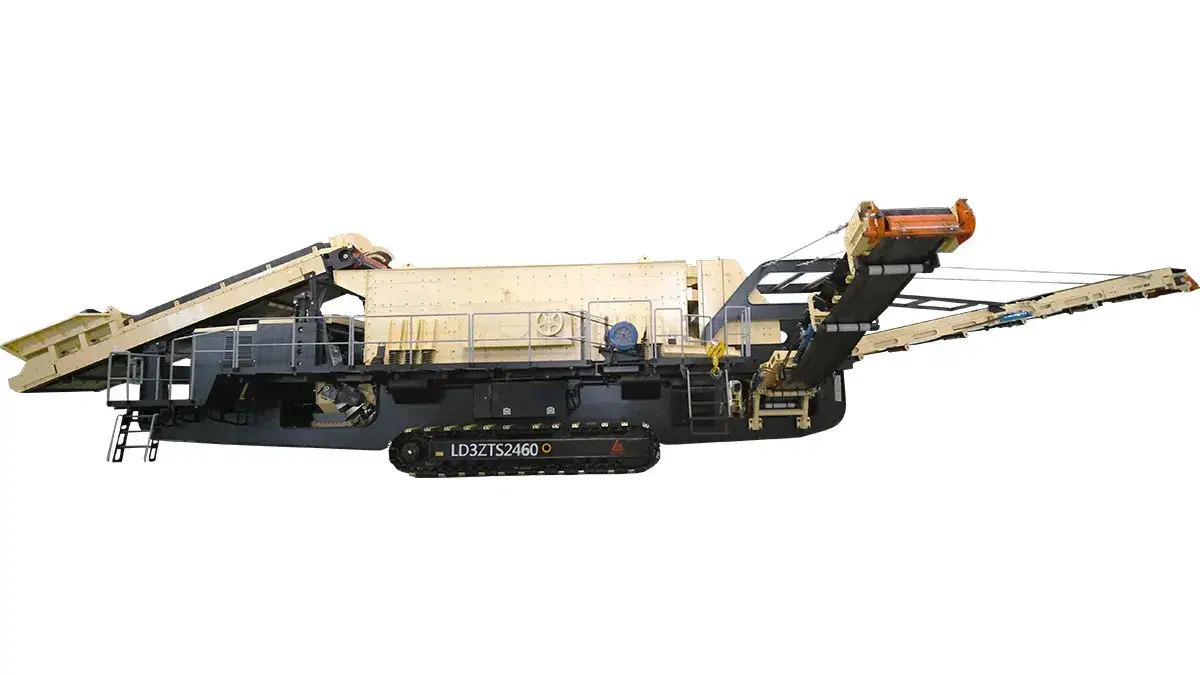

Crawler Mobile Screening Plant
Crawler Mobile Screening Equipment
This stone screening plant adopts internationally advanced vibrator design concepts and a three-shaft forced synchronous vibration. The screening plant can be specifically designed according to different operational conditions. Due to its excellent throwing angle, amplitude, and speed, the screened materials follow an elliptical stroke, which gives the plant characteristics such as low risk of clogging, high screening efficiency, and high output. Additionally, this screening plant is capable of scalping and heavy-duty screening as well as wet and dry materials.
Applicable Materials
- Metal Ores
- Non-Metal Ores
Specifications
| Model | ||||
| Feeder | Stockpile volume (m³) | 4.5 | 4.5 | 5.5 |
| Size (length×belt width) | 6m×B1000 | 6m×B1200 | 6m×B1200 | |
| Loading height (mm) | 2400 | 2500 | 2550 | |
| Horizontal screen | Screen Size (mm) | 1800×6000 | 2000×6000 | 2400×6000 |
| Screen decks | 3 | 3 | 3 | |
| Top discharge belt conveyor | Discharge height (mm) | 3500 | 3500 | 3500 |
| Size (length×belt width) | 7.5m×B650 | 7.5m×B650 | 8.5m×B650 | |
| Second discharge belt conveyor | Discharge height(mm) | 3250 | 3250 | 3250 |
| Size (length×belt width) | 7m×B650 | 7m×B650 | 7.5m×B650 | |
| Third discharge belt conveyor | Discharge height (mm) | 3250 | 3250 | 3250 |
| Size (length×belt width) | 7m×B650 | 7m×B650 | 7.5m×B650 | |
| Bottom discharge belt conveyor | Discharge height (mm) | 3250 | 3250 | 3250 |
| Size (length×belt width) | 7m×B650 | 7m×B650 | 7.5m×B650 | |
| Under screen conveyor | Size (length×belt width) | 6.5m×B1000 | 6.5m×B1000 | 6.5m×B1200 |
| Overall stone crusher plant | Crushing capacity (t/h) | 50-180 | 50-320 | 250-450 |
| Total power (kW) | 74.5 | 82.5 | 89.5 | |

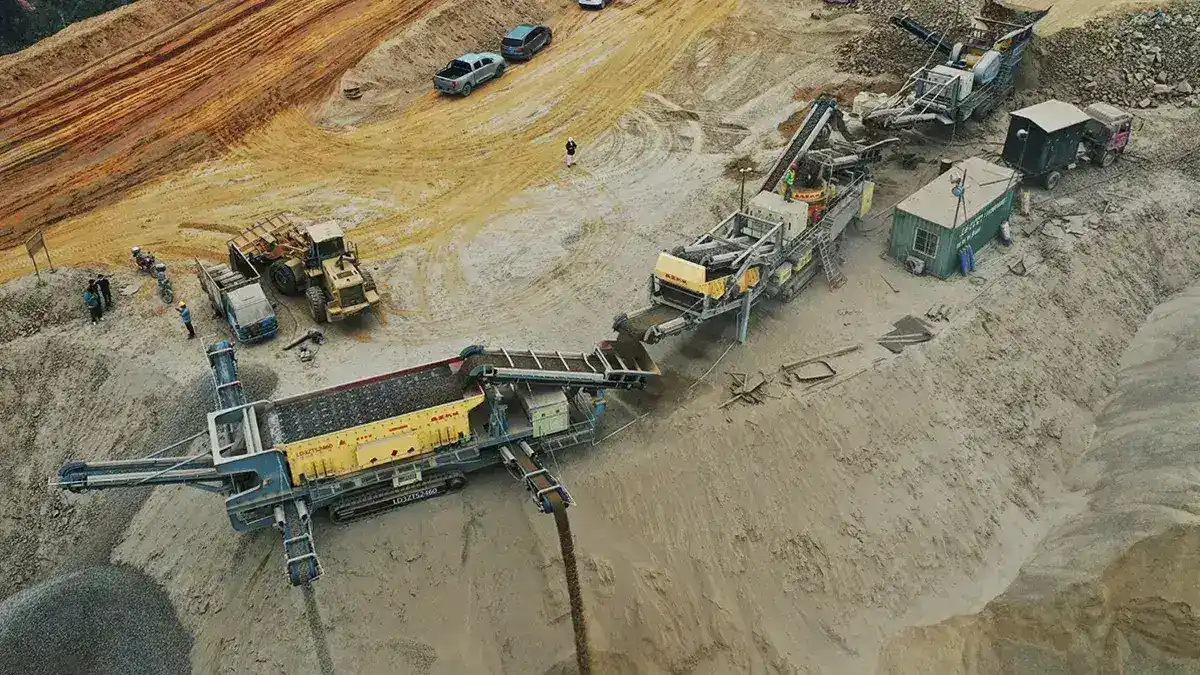

Projects

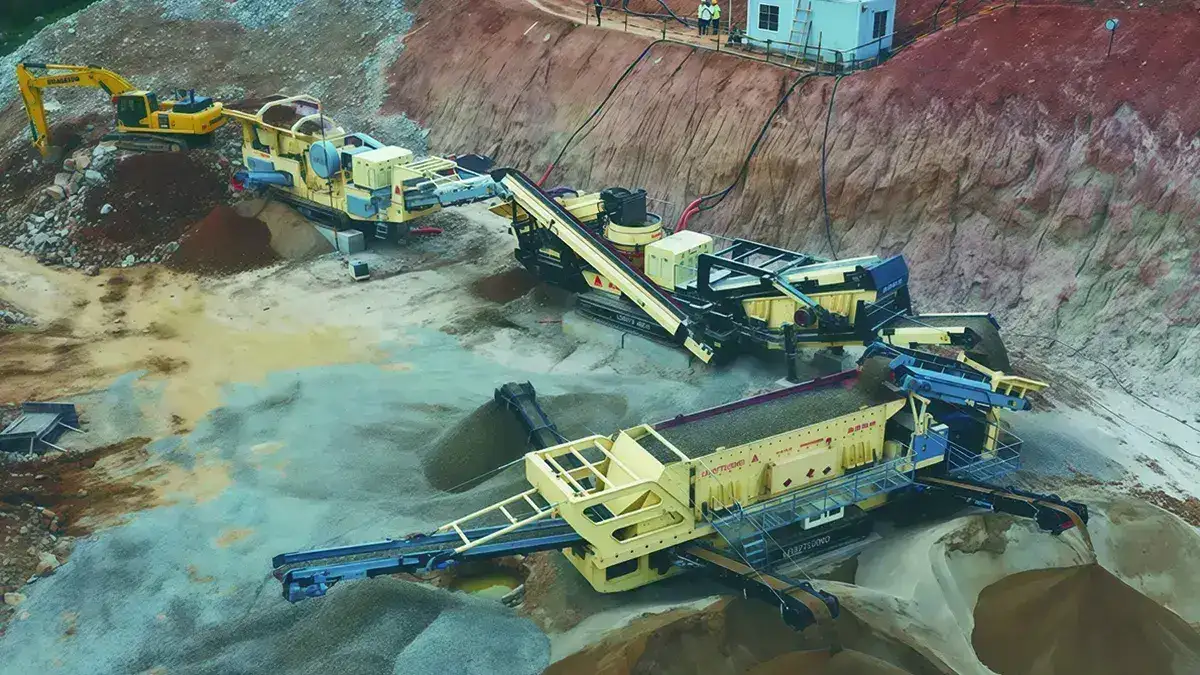

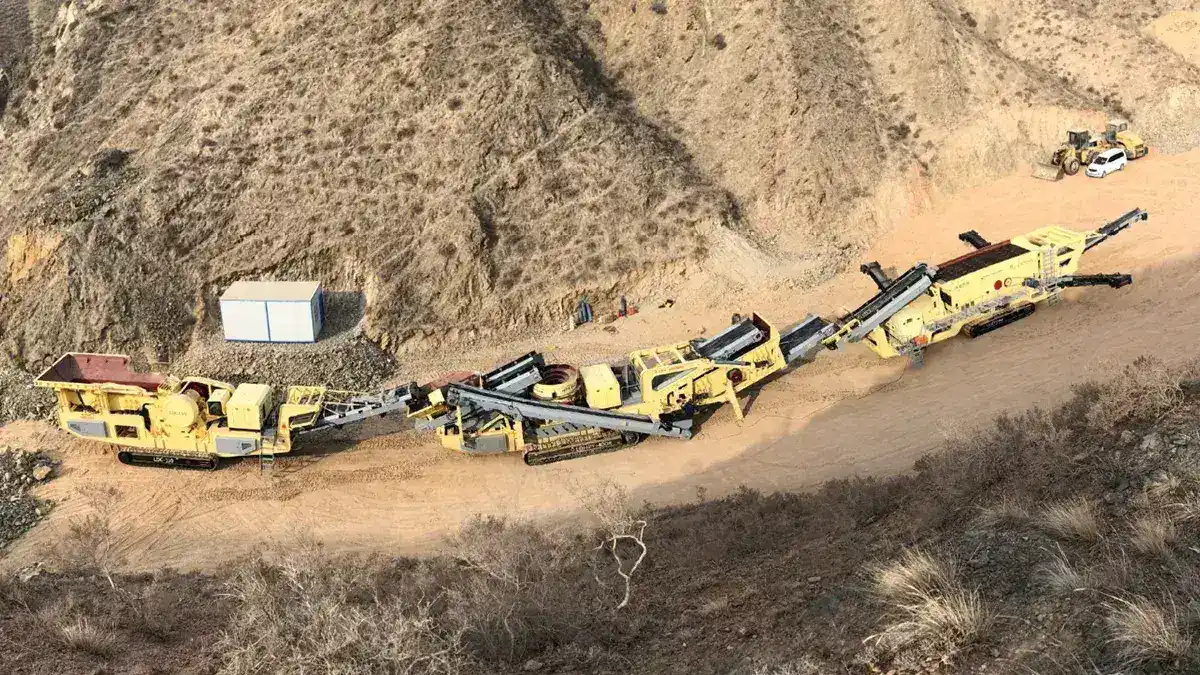

300 TPH Mobile Crushing Plant Project in Zhaoqing, Guangdong
Mobile Crushing Plant Project in Fujian
Mobile Crushing Plant Project in Guangxi

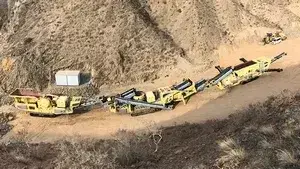

Mobile Crushing Plant Project in Gansu

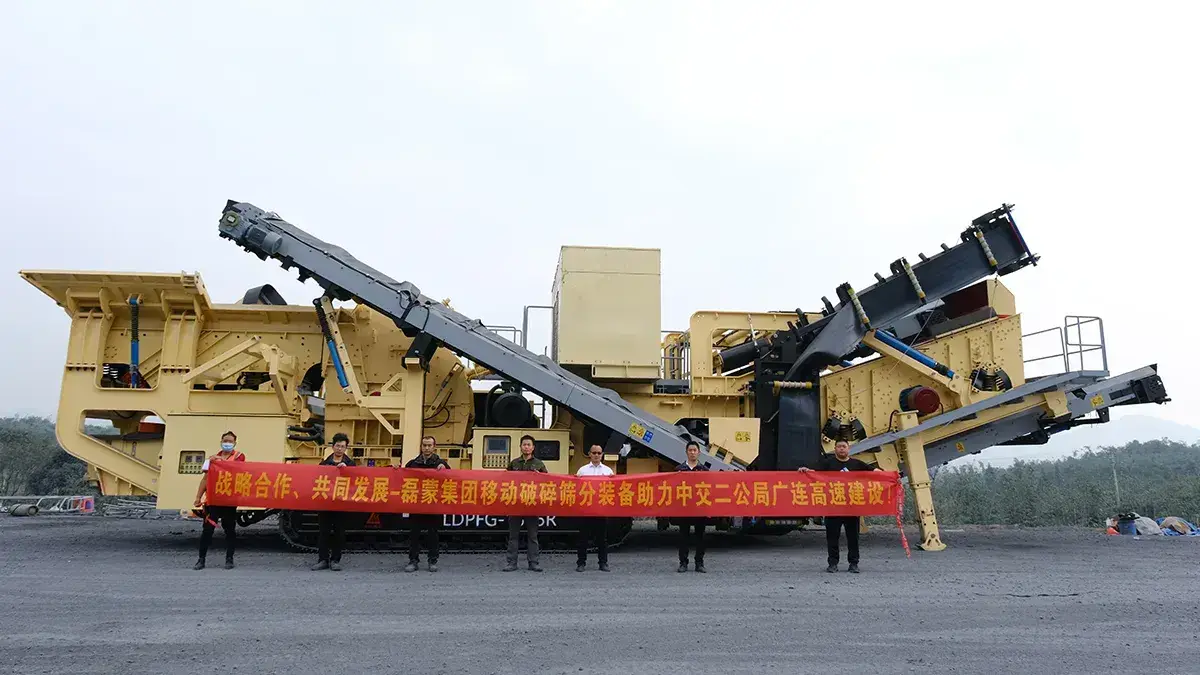

Mobile Crushing Plant Project of CCCC Second Highway Engineering Company (Qingyuan)
